Question: 2. (Flow-time Analysis) You have collected the data for a process. The information is given below. Immediate Activity Predecessors Time (Minutes) A 3 B 4

2. (Flow-time Analysis) You have collected the

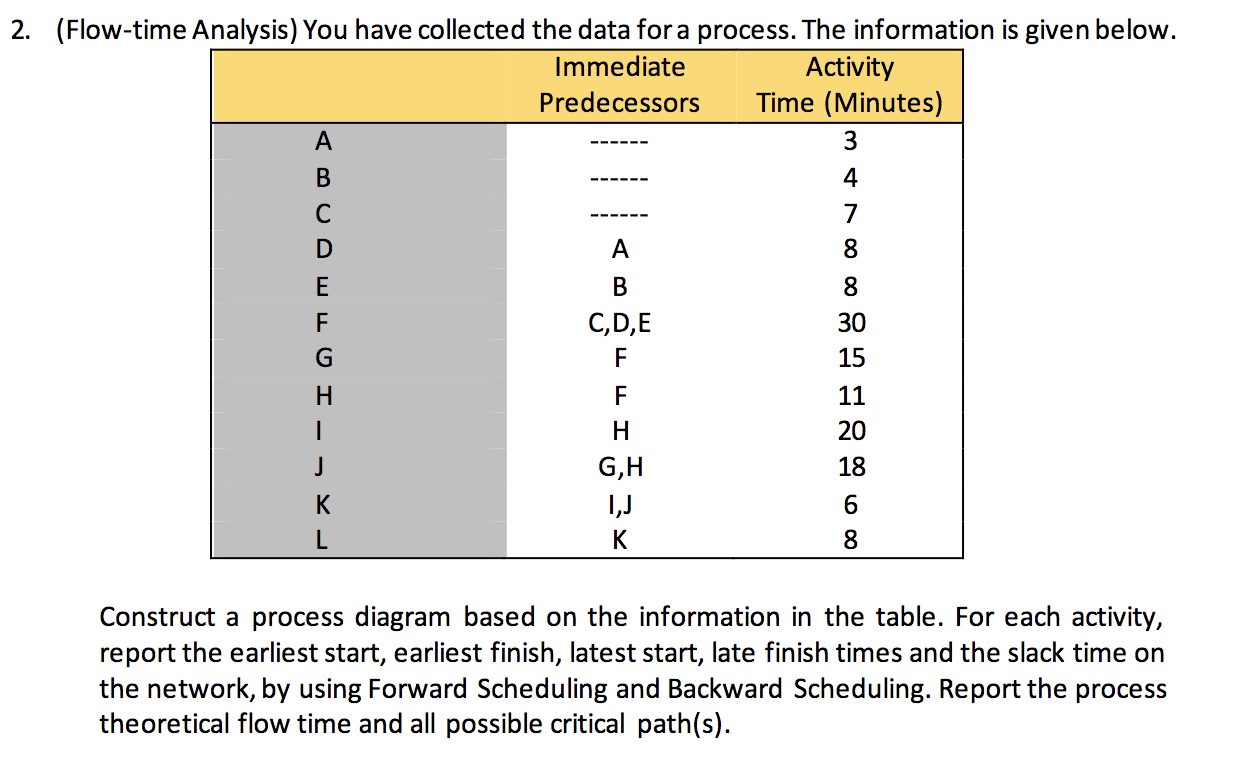

2. (Flow-time Analysis) You have collected the data for a process. The information is given below. Immediate Activity Predecessors Time (Minutes) A 3 B 4 7 8 D E 8 30 15 G H A B C,D,E F F H GH 1,J K 11 20 18 J K 6 8 Construct a process diagram based on the information in the table. For each activity, report the earliest start, earliest finish, latest start, late finish times and the slack time on the network, by using Forward Scheduling and Backward Scheduling. Report the process theoretical flow time and all possible critical path(s)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
