Question: 2. From the below table; please show your work on the following: A. Construct a precedence diagram (2 mark) B. on the diagram, compute the

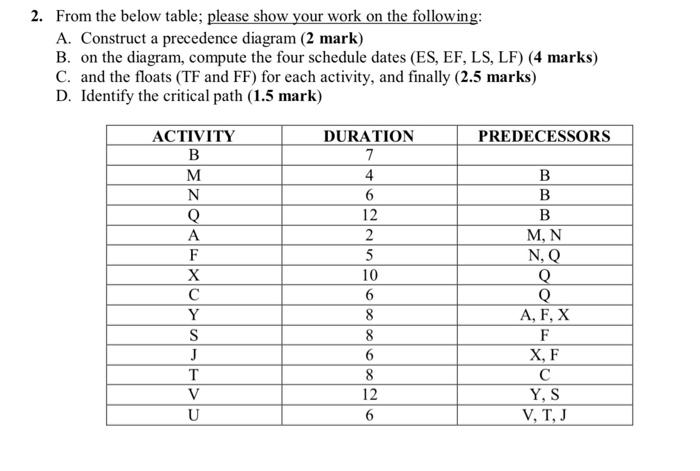

2. From the below table; please show your work on the following: A. Construct a precedence diagram (2 mark) B. on the diagram, compute the four schedule dates (ES, EF, LS, LF) (4 marks) C. and the floats (TF and FF) for each activity, and finally (2.5 marks) D. Identify the critical path (1.5 mark) PREDECESSORS ACTIVITY B M N Q A F X Y S J T V U DURATION 7 4 6 12 2 5 10 6 8 8 6 8 12 6 B B B M, N NQ Q Q A, F, X F X, F Y, S V, T, J
