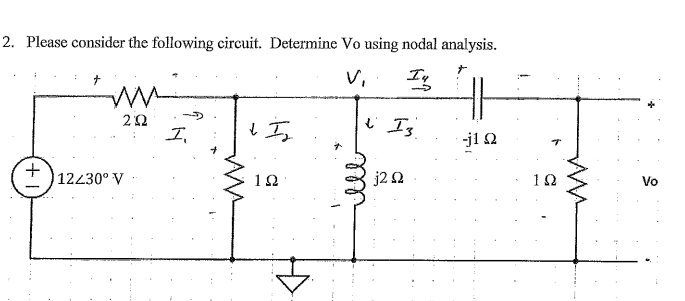

Question: 2 . Please consider the following circuit. Determine Vo using nodal analysis.

2. Please consider the following circuit. Determine Vo using nodal analysis.
2 . Please consider the following circuit.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
