Question: 2. Simplify the given expression to its SOP form. Draw the logic circuit for the simplified SOP function. [8marks] G = (C+B) + CBA +

2. Simplify the given expression to its SOP form. Draw the

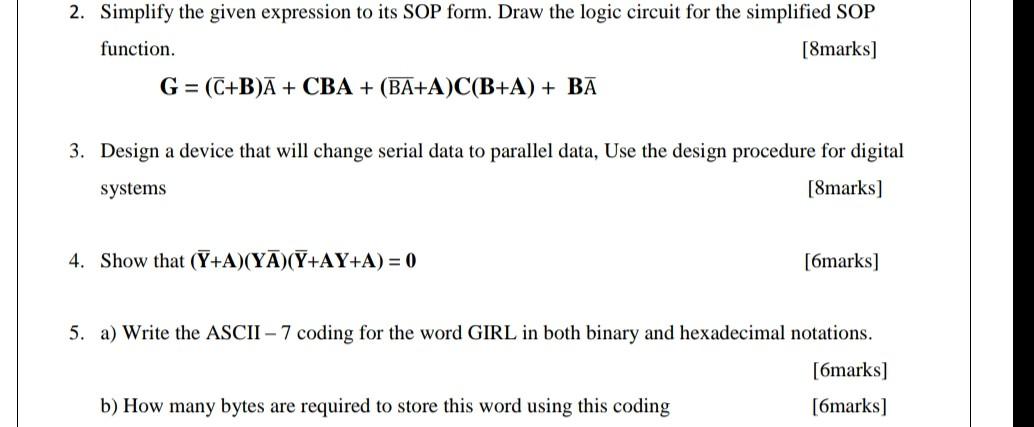

2. Simplify the given expression to its SOP form. Draw the logic circuit for the simplified SOP function. [8marks] G = (C+B) + CBA + (BA+A)C(B+A) + B 3. Design a device that will change serial data to parallel data, Use the design procedure for digital systems [8marks] 4. Show that (7+A)(YA)(Y+AY+A) = 0 [6marks] 5. a) Write the ASCII - 7 coding for the word GIRL in both binary and hexadecimal notations. [6marks] b) How many bytes are required to store this word using this coding [6marks]
