Question: 2. The table below shows the relevant task data for a future design project. Draw in Word (or other software of your choice, but then

2. The table below shows the relevant task data

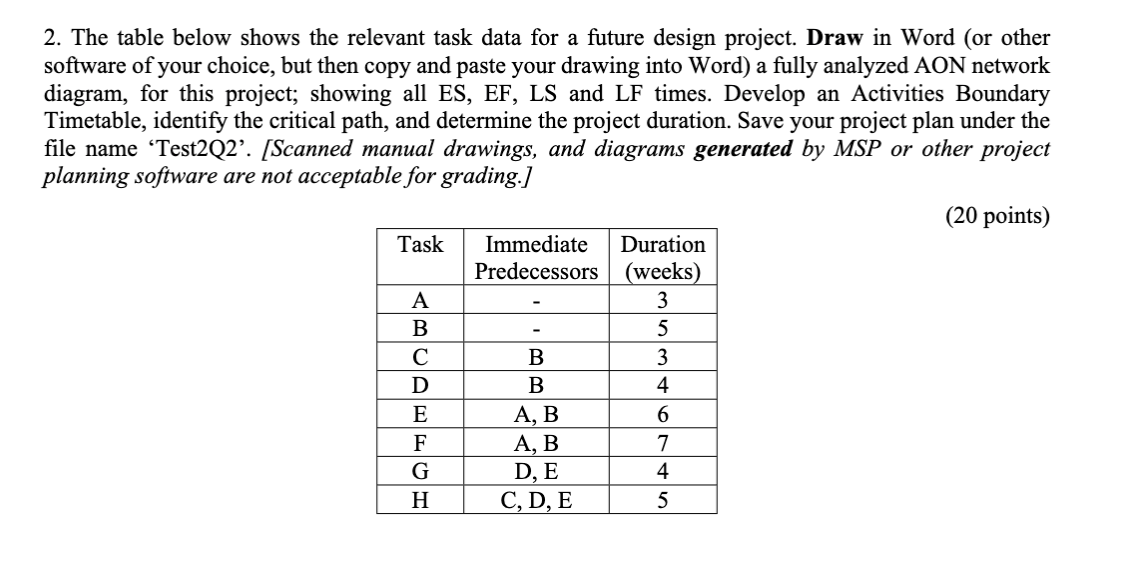

2. The table below shows the relevant task data for a future design project. Draw in Word (or other software of your choice, but then copy and paste your drawing into Word) a fully analyzed AON network diagram, for this project; showing all ES, EF, LS and LF times. Develop an Activities Boundary Timetable, identify the critical path, and determine the project duration. Save your project plan under the file name Test2Q2. [Scanned manual drawings, and diagrams generated by MSP or other project planning software are not acceptable for grading.) (20 points) Task Immediate Duration Predecessors (weeks) A 3 B 5 B 3 D B 4 E A, B 6 F A, B 7 G D, E 4 H C, D, E 5
