Question: 26. Using the logic network information below, transfer the CPM network to a GANTT Chart assuming that all activities start as soon as possible. Add

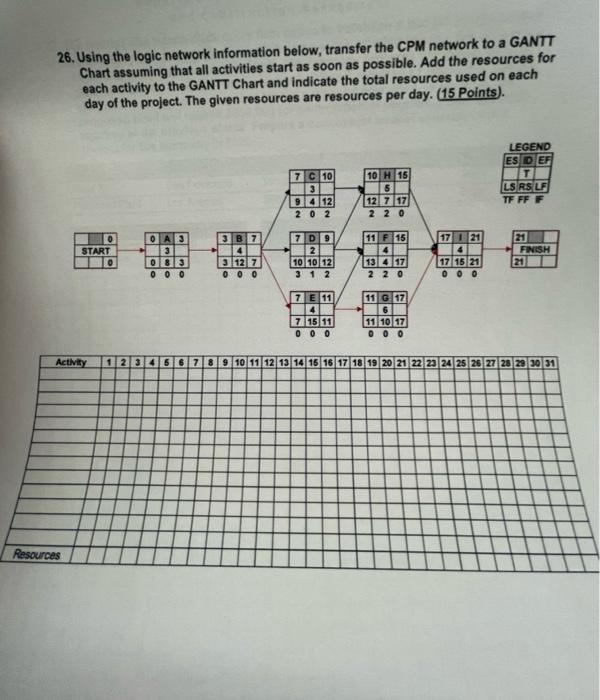

26. Using the logic network information below, transfer the CPM network to a GANTT Chart assuming that all activities start as soon as possible. Add the resources for each activity to the GANTT Chart and indicate the total resources used on each day of the project. The given resources are resources per day. (15 Points). 7 C 10 3 9 4 12 2 0 2 10 H15 5 127 17 2 2 0 LEGEND ES DER T LS RS LF TF FF F O START 0 O A3 3 083 OOO 3B 7 4 3127 0 0 0 7 D 9 2 10 10/12 3 1 2 11 F 15 4 13 4 17 2 2 0 17 121 4 17 15 21 0 0 0 21 FINISH 21 7 E 11 4 7.15 11 0 0 0 11 G 17 6 11 10 17 000 Activity 1 2 3 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 Resources

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
