Question: ( 3 0 points ) As shown in this figure, compute the magnitude of the resultant force on the indicated area ( Rectangular view port

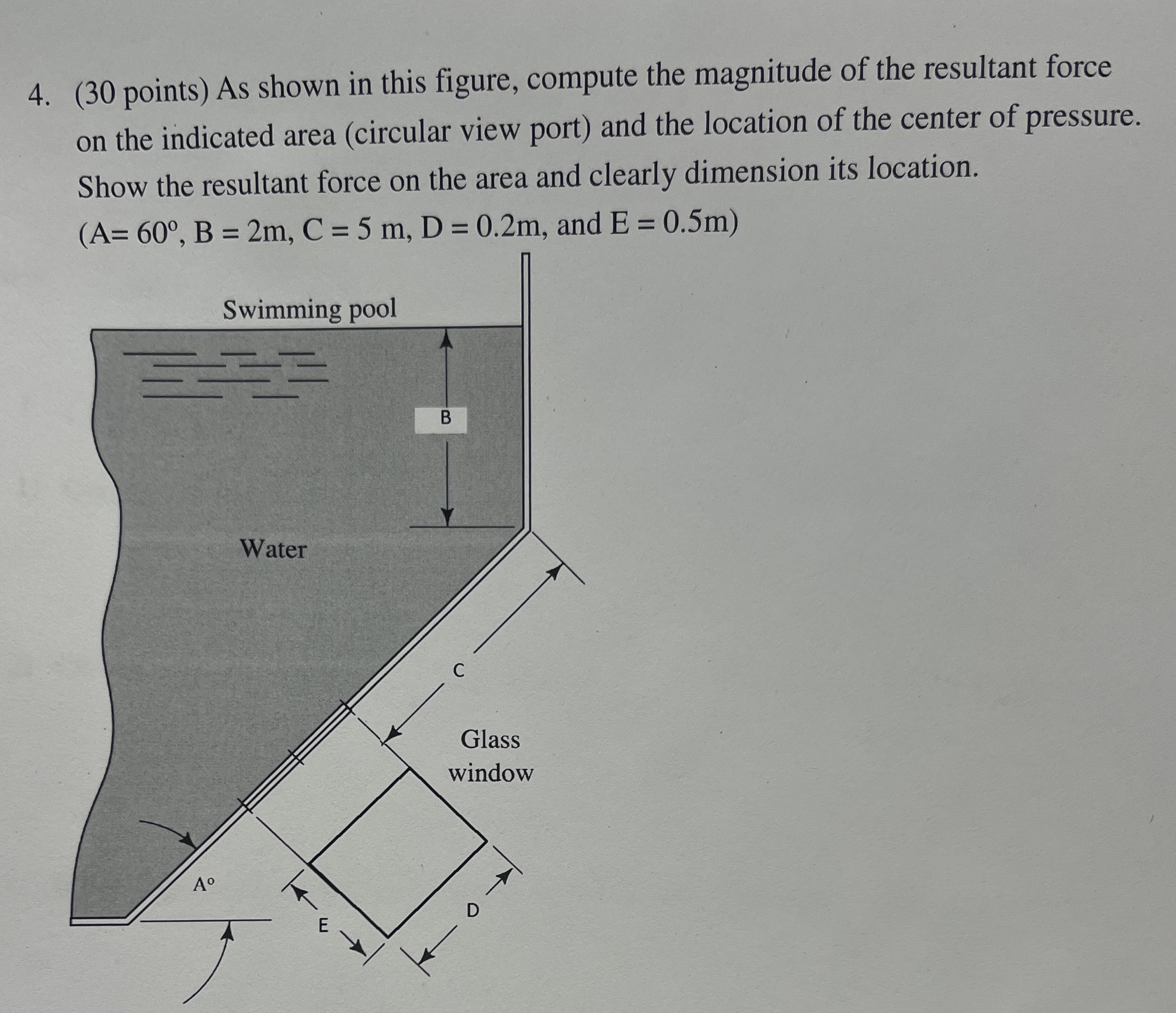

(30 points) As shown in this figure, compute the magnitude of the resultant force
on the indicated area (Rectangular view port) and the location of the center of pressure.
Show the resultant force on the area and clearly dimension its location. (A=60 degrees, B=2m, C =5m, D=0.2m and E=0.5)(}
( 3 0 points ) As shown in this figure, compute
