Question: ( 3 5 pts ) UART. You have been asked to decipher the UART logic signal below. You know only that it is sent at

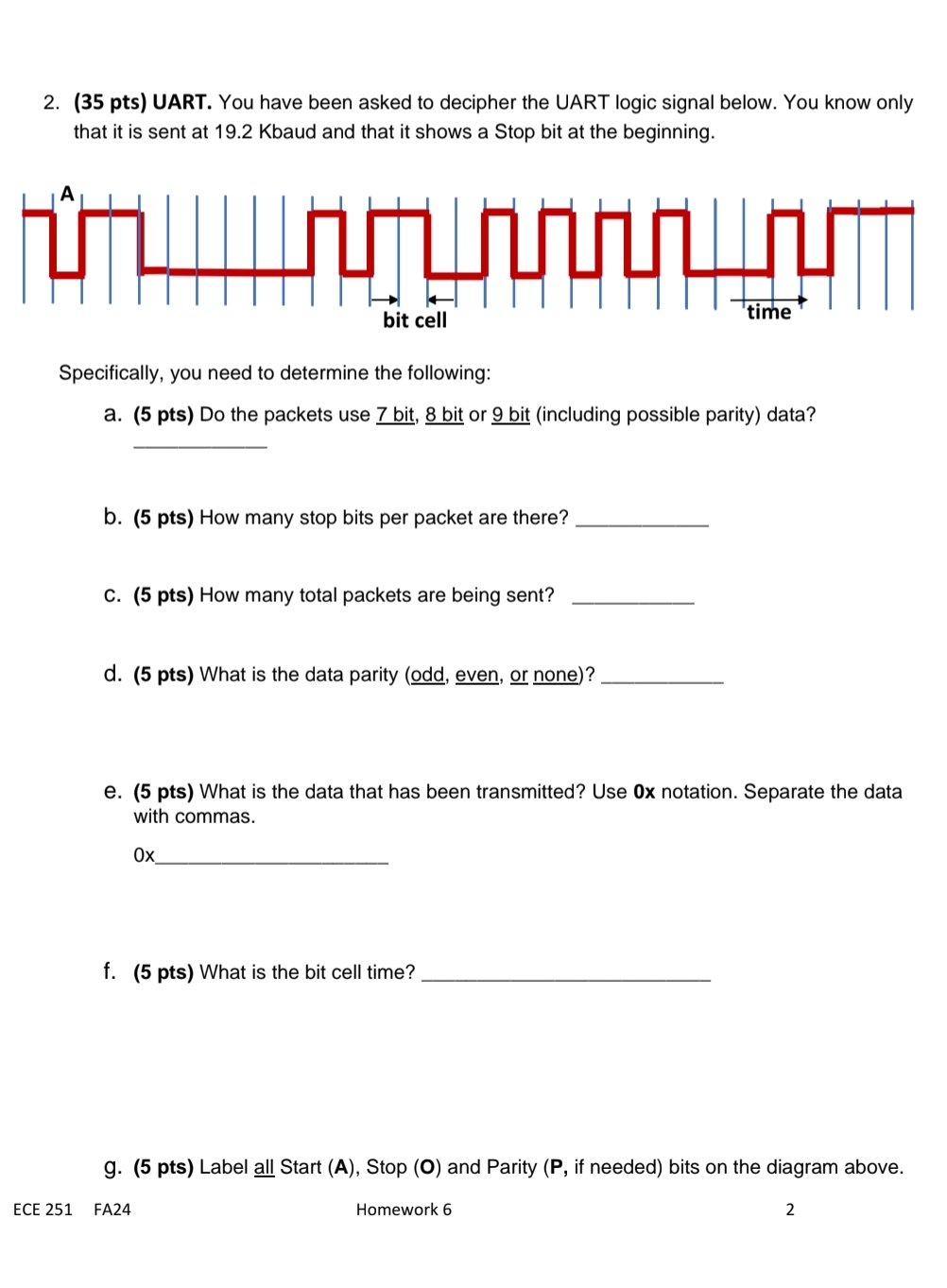

(35 pts) UART. You have been asked to decipher the UART logic signal below. You know only that it is sent at 19.2 Kbaud and that it shows a Stop bit at the beginning.
Specifically, you need to determine the following:
a.(5 pts) Do the packets use
( 3 5 pts ) UART. You have been asked to decipher

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
