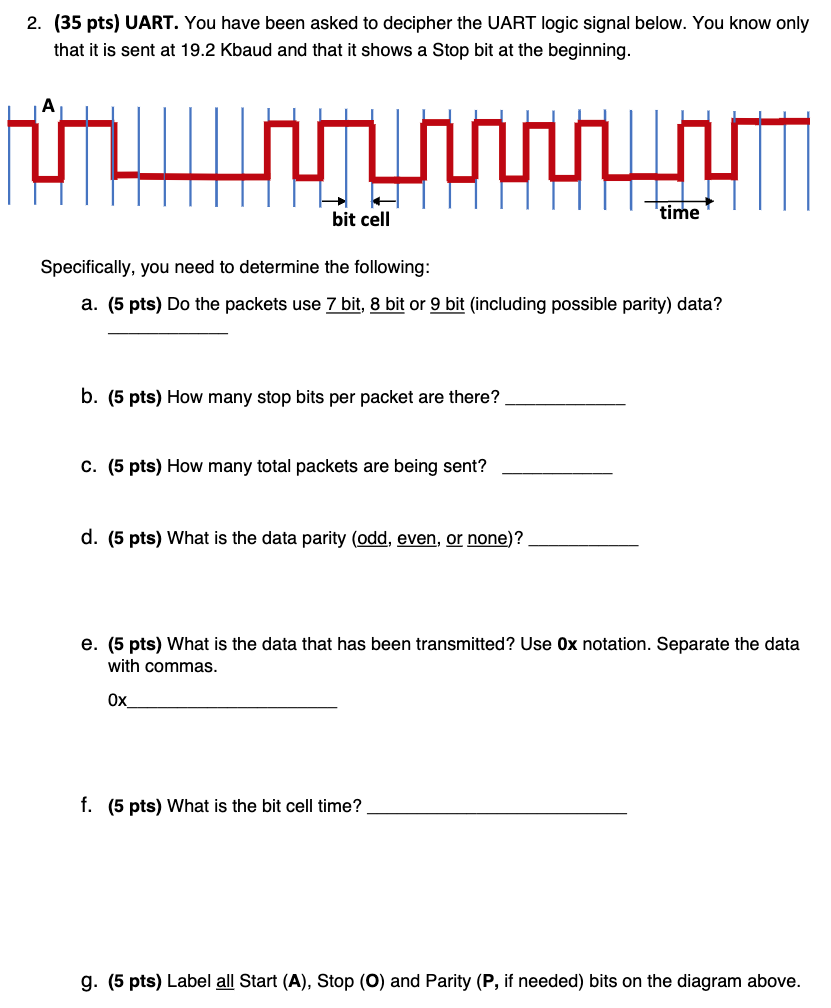

$2.(35$ pts$)$ UART. You have been asked to decipher the UART logic signal below. You know only that it is sent at $19\mathrm{.}2$ Kbaud and that it shows a Stop bit at the beginning.

Specifically, you need to determine the following:

a$.(5$ pts$)$ Do the packets use $\backslash (\backslash$underline$\{7\backslash$text $\{$ bit, $\}\}\backslash$underline$\{8\backslash$text $\{$ bit $\}\}\backslash )$ or $\backslash (\backslash$underline$\{9\}\backslash )$ bit $($including possible parity$)$ data?

b$.(5$ pts$)$ How many stop bits per packet are there?

c$.(5$ pts$)$ How many total packets are being sent?

d$.(5$ pts$)$ What is the data parity $($odd$,$ even, or none$)?$

e$.(5$ pts$)$ What is the data that has been transmitted? Use $\backslash (0$ x $\backslash )$ notation. Separate the data with commas.

$\backslash (0)\backslash )$

f$.(5$ pts$)$ What is the bit cell time? $.$

g$.(5$ pts$)$ Label all Start $($A$),$ Stop $($O$)$ and Parity $($P$,$ if needed$)$ bits on the diagram above.
