Question: 3 6 8 Engineering Mechanics 1 0 . Using the principle of virtual work, find the reaction R d for the system shown in Fig.

368
Engineering Mechanics

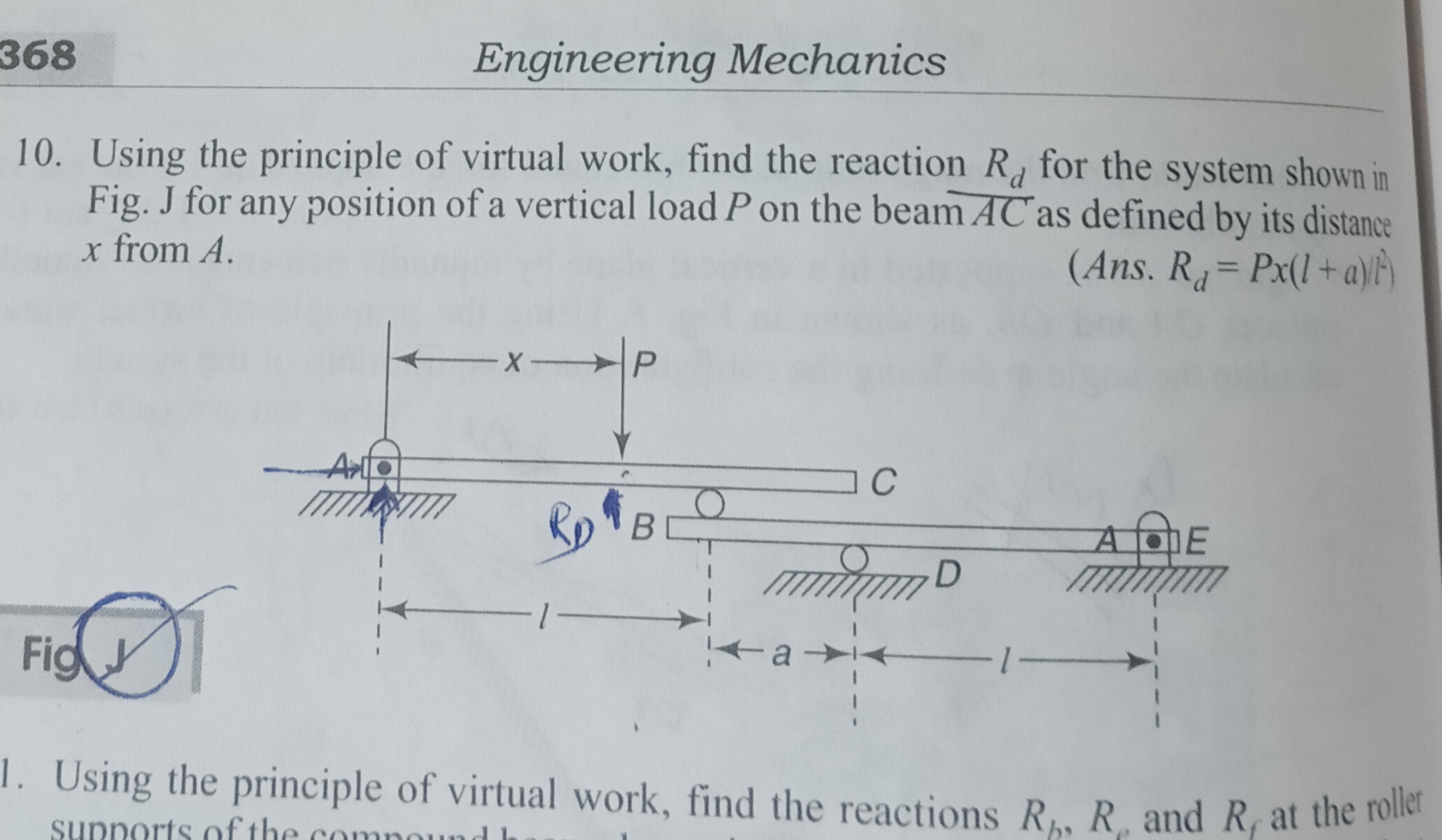

10. Using the principle of virtual work, find the reaction Rd for the system shown in Fig. J for any position of a vertical load P on the beam ?bar(AC) as defined by its distance x from A.
(Ans.Rd=Px(l+a)(R)
Using the principle of virtual work, find the reactions Rb,Rc and Rf at the roller
3 6 8 Engineering Mechanics 1 0 . Using the

Step by Step Solution
