Question: 3. (a) Draw a network diagram given the following information: Activity Nodes Duration J 1-2 10 1-3 8 2-4 6 2-3 3 N 3-4 2

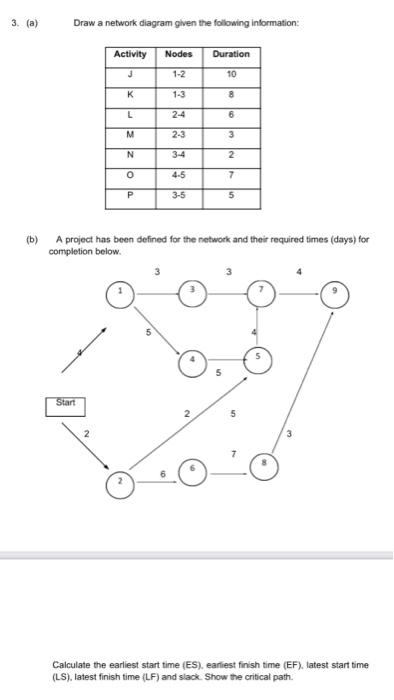

3. (a) Draw a network diagram given the following information: Activity Nodes Duration J 1-2 10 1-3 8 2-4 6 2-3 3 N 3-4 2 0 4-5 7 P 3-5 (b) A project has been defined for the network and their required times (days) for completion below. Start 2 Calculate the earliest start time (ES), earliest finish time (EF), latest start time (LS), latest finish time (LF) and slack. Show the critical path. K L M
