Question: 3) Convert the function F shown in the truth table to an equation. Don't minimize the equation. 4) Use algebraic manipulation to minimize the equation

3) Convert the function F shown in the truth table to

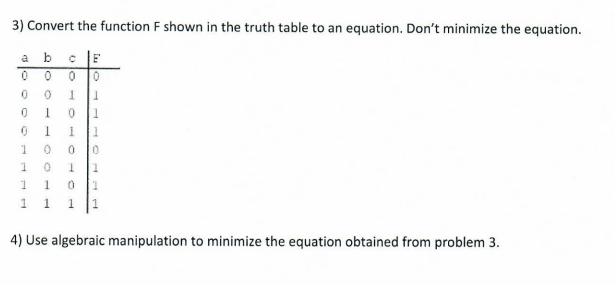

3) Convert the function F shown in the truth table to an equation. Don't minimize the equation. 4) Use algebraic manipulation to minimize the equation obtained from problem 3

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
