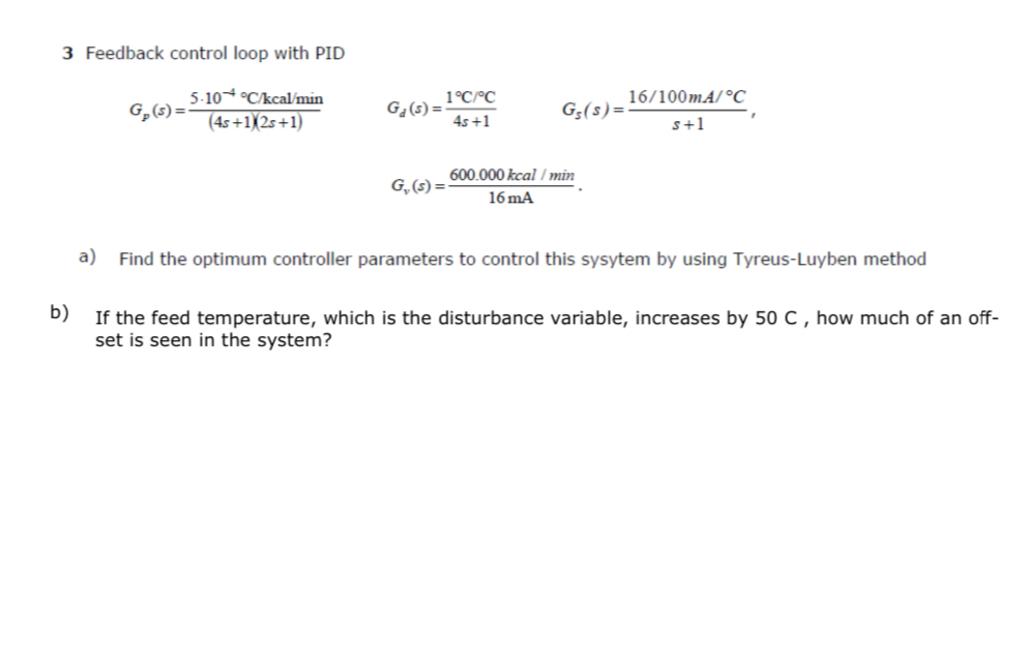

Question: 3 Feedback control loop with PID G p ( s ) = 5 * 1 0 - 4 C k c a l m i

3 Feedback control loop with PID
Gp(s)=5*10-4Ckcalmin(4s+1)(2s+1),Gd(s)=1CC4s+1,Gs(s)=16100mACs+1,
Gv(s)=600.000kcalmin16(mA).
a) Find the optimum controller parameters to control this sysytem by using Tyreus-Luyben method
b) If the feed temperature, which is the disturbance variable, increases by 50C, how much of an offset is seen in the system?
 3 Feedback control loop with PID Gp(s)=5*10-4Ckcalmin(4s+1)(2s+1),Gd(s)=1CC4s+1,Gs(s)=16100mACs+1, Gv(s)=600.000kcalmin16(mA). a) Find the
