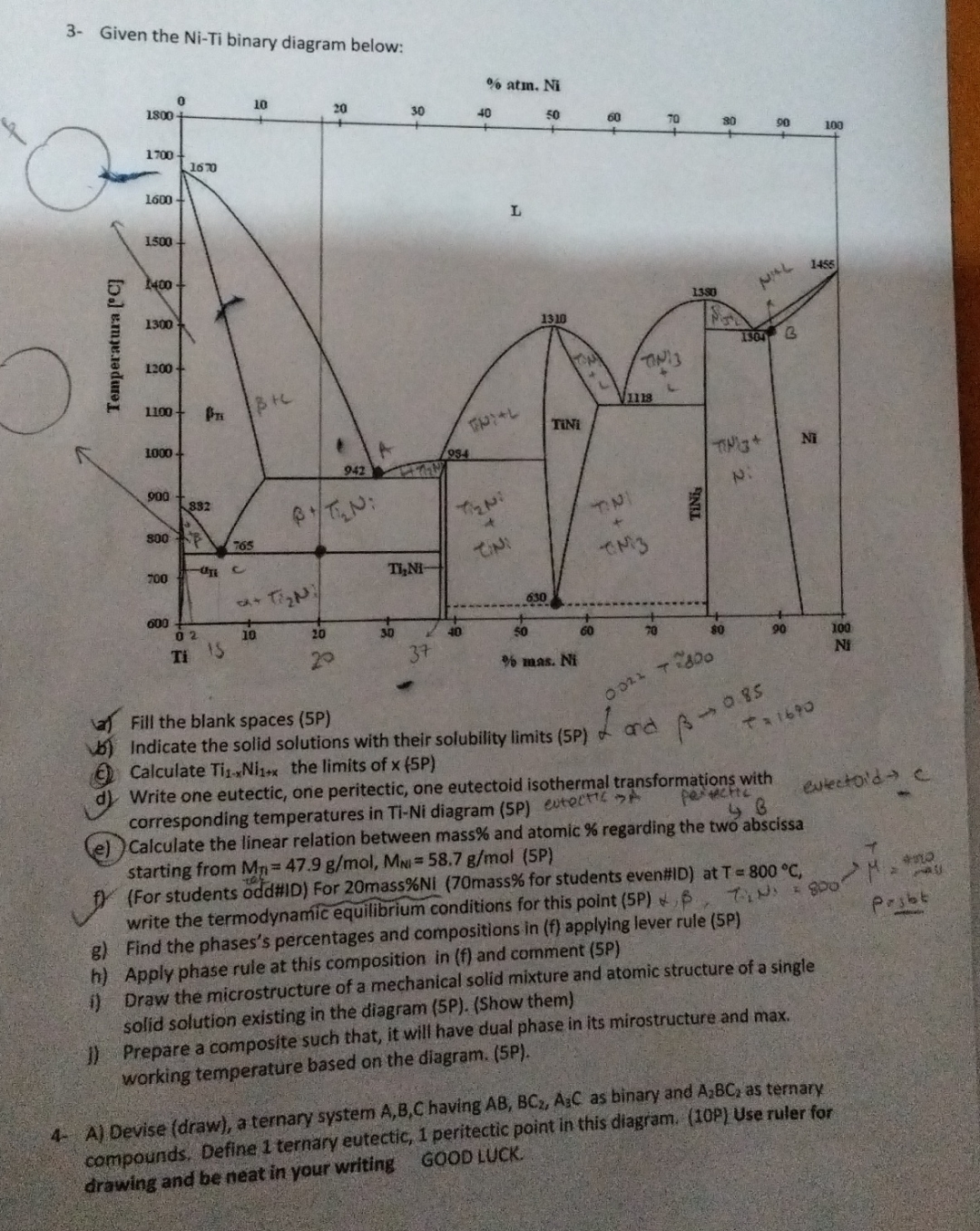

$3-$ Given the Ni$-$Ti binary diagram below:

$\%$ atm. $Ni$

a$)$ Fill the blank spaces $(5$P$)$

b$)$ Indicate the solid solutions with their solubility limits $(5$P$)$

c$)$ Calculate $T{i}_{1-x}N{i}_{1+x}$ the limits of $)$

d$)$ Write one eutectic, one peritectic, one eutectoid isothermal transformations with corresponding temperatures in Ti$-$Ni diagram $(5$P$)$ evtect $CP$ pe $+$CctiC

ewlectoid $C$

$3$

$($e$)$ Calculate the linear relation between mass $\%$ and atomic $\%$ regarding the two abscissa starting from $)$

f$.($For students odd#ID$)$ For $20$ mass $\%NI(70$ mass $\%$ for students even#ID$)$ at $T=800C,$ write the termodynamic equilibrium conditions for this point $(5$P$),P,{}_2,4=800=4++$oro $=$ tomo casis $p=3bt$

g$)$ Find the phases's percentages and compositions in $(f)$ applying lever rule $(5$P$)$

h$)$ Apply phase rule at this composition in $($f$)$ and comment $(5$P$)$

i$)$ Draw the microstructure of a mechanical solid mixture and atomic structure of a single solid solution existing in the diagram $(5$P$).($Show them$)$

Prepare a composite such that, it will have dual phase in its mirostructure and max. working temperature based on the diagram. $(5$P$).$

A$)$ Devise $($draw$),$ a ternary system $A,B,C$ having $AB,B{C}_2,A_{3}C$ as binary and $A_{2}B{C}_2$ as ternary compounds. Define $1$ ternary eutectic, $1$ peritectic point in this diagram. $(10$P$)$ Use ruler for drawing and be neat in your writing GOOD LUCK.
