Question: (3 pts) Clock, and S, R waveforms are shown below for a negative edge triggered SR flip flop. Sketch the output Q, obtained in response

(3 pts) Clock, and S, R waveforms are shown below for

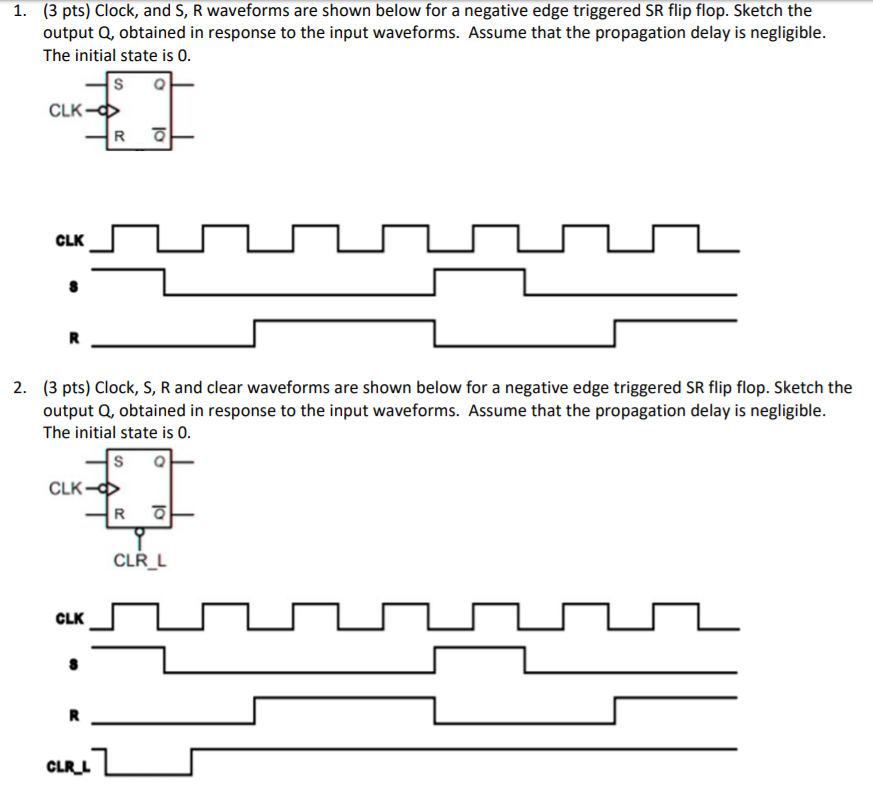

(3 pts) Clock, and S, R waveforms are shown below for a negative edge triggered SR flip flop. Sketch the output Q, obtained in response to the input waveforms. Assume that the propagation delay is negligible The initial state is 0 1. CLK- CLK 2. (3 pts) Clock, S, R and clear waveforms are shown below for a negative edge triggered SR flip flop. Sketch the output Q, obtained in response to the input waveforms. Assume that the propagation delay is negligible. The initial state is 0. CLK- CLR L CLK CLR L

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
