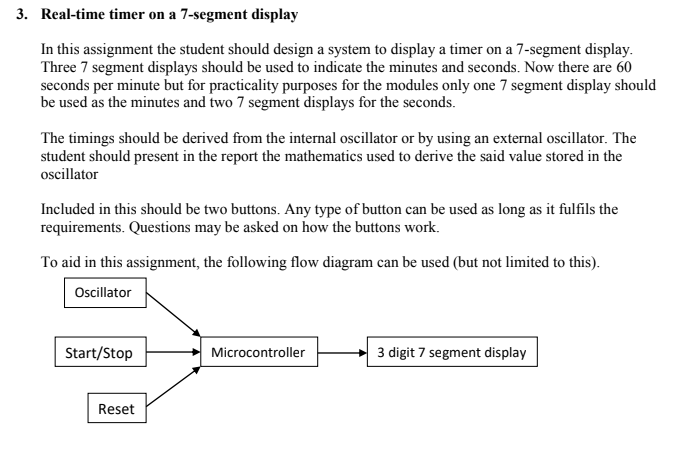

3. Real-time timer on a 7-segment display In this assignment the student should design a system to display a timer on a 7-segment display. Three 7 segment displays should be used to indicate the minutes and seconds. Now there are 60 seconds per minute but for practicality purposes for the modules only one 7 segment display should be used as the minutes and two 7 segment displays for the seconds. The timings should be derived from the internal oscillator or by using an external oscillator. The student should present in the report the mathematics used to derive the said value stored in the oscillator Included in this should be two buttons. Any type of button can be used as long as it fulfils the requirements. Questions may be asked on how the buttons work. To aid in this assignment, the following flow diagram can be used (but not limited to this). Oscillator Start/Stop Microcontroller 3 digit 7 segment display Reset 3. Real-time timer on a 7-segment display In this assignment the student should design a system to display a timer on a 7-segment display. Three 7 segment displays should be used to indicate the minutes and seconds. Now there are 60 seconds per minute but for practicality purposes for the modules only one 7 segment display should be used as the minutes and two 7 segment displays for the seconds. The timings should be derived from the internal oscillator or by using an external oscillator. The student should present in the report the mathematics used to derive the said value stored in the oscillator Included in this should be two buttons. Any type of button can be used as long as it fulfils the requirements. Questions may be asked on how the buttons work. To aid in this assignment, the following flow diagram can be used (but not limited to this). Oscillator Start/Stop Microcontroller 3 digit 7 segment display Reset
