Question: 30. What is the expected total time for this project with logical relationships and activity durations shown? Also, highlight the critical path on the diagram.

30. What is the expected total time for this

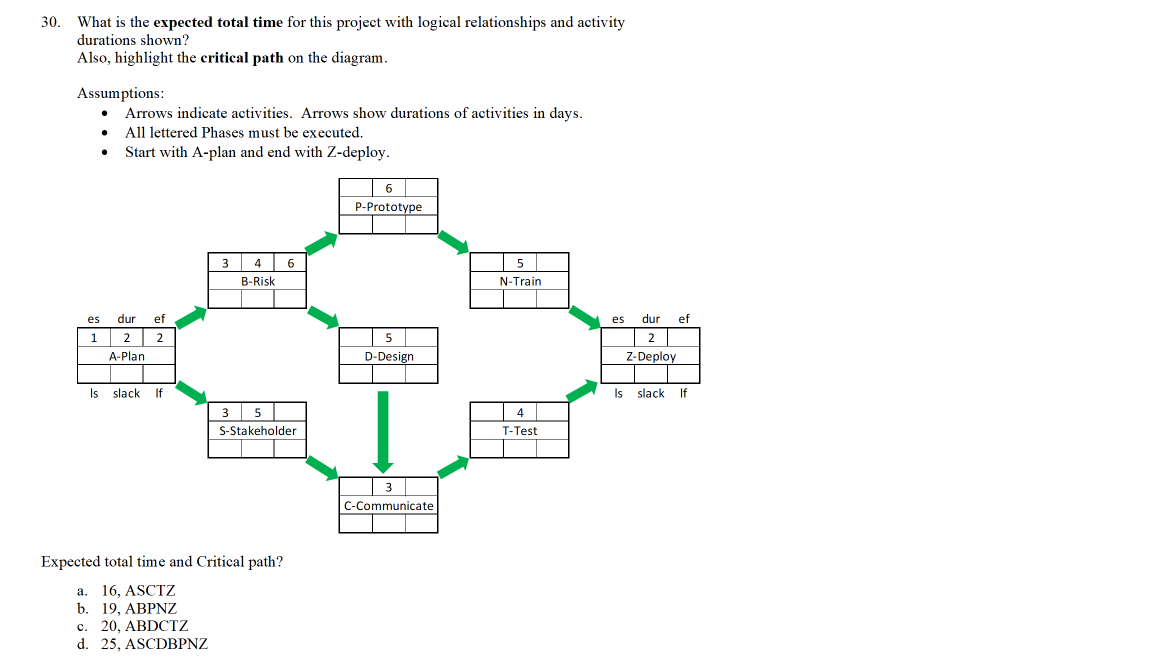

30. What is the expected total time for this project with logical relationships and activity durations shown? Also, highlight the critical path on the diagram. Assumptions: Arrows indicate activities. Arrows show durations of activities in days. All lettered Phases must be executed. Start with A-plan and end with Z-deploy. P-Prototype 6 34 B-Risk | 5 N-Train es ef es dur ef 1 dur 2 A-Plan 5 D-Design Z-Deploy Is slack If Is slack If 35 S-Stakeholder 4 T-Test C-Communicate Expected total time and Critical path? a. 16, ASCTZ b. 19, ABPNZ c. 20, ABDCTZ d. 25, ASCDBPNZ
