Question: 4 - 1 1 4 . Replace the loading acting on the beam by a single resultant force. Specify where the force acts, measured from

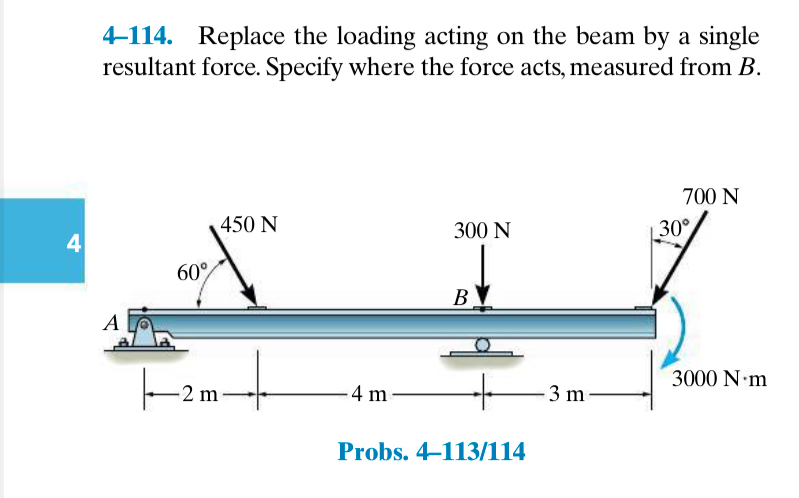

4-114. Replace the loading acting on the beam by a single resultant force. Specify where the force acts, measured from B.
4 - 1 1 4 . Replace the loading acting on the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

4 - 1 3 1 . Replace the loading acting on the beam by a single resultant force. Specify where the force acts, measured from end A . * 4 - 1 3 2 . Replace the loading acting on the beam by a single...
