SHW$-4$B: Ch$.4-$ Vectors $($Moments$)$ in $2$D and $3$D

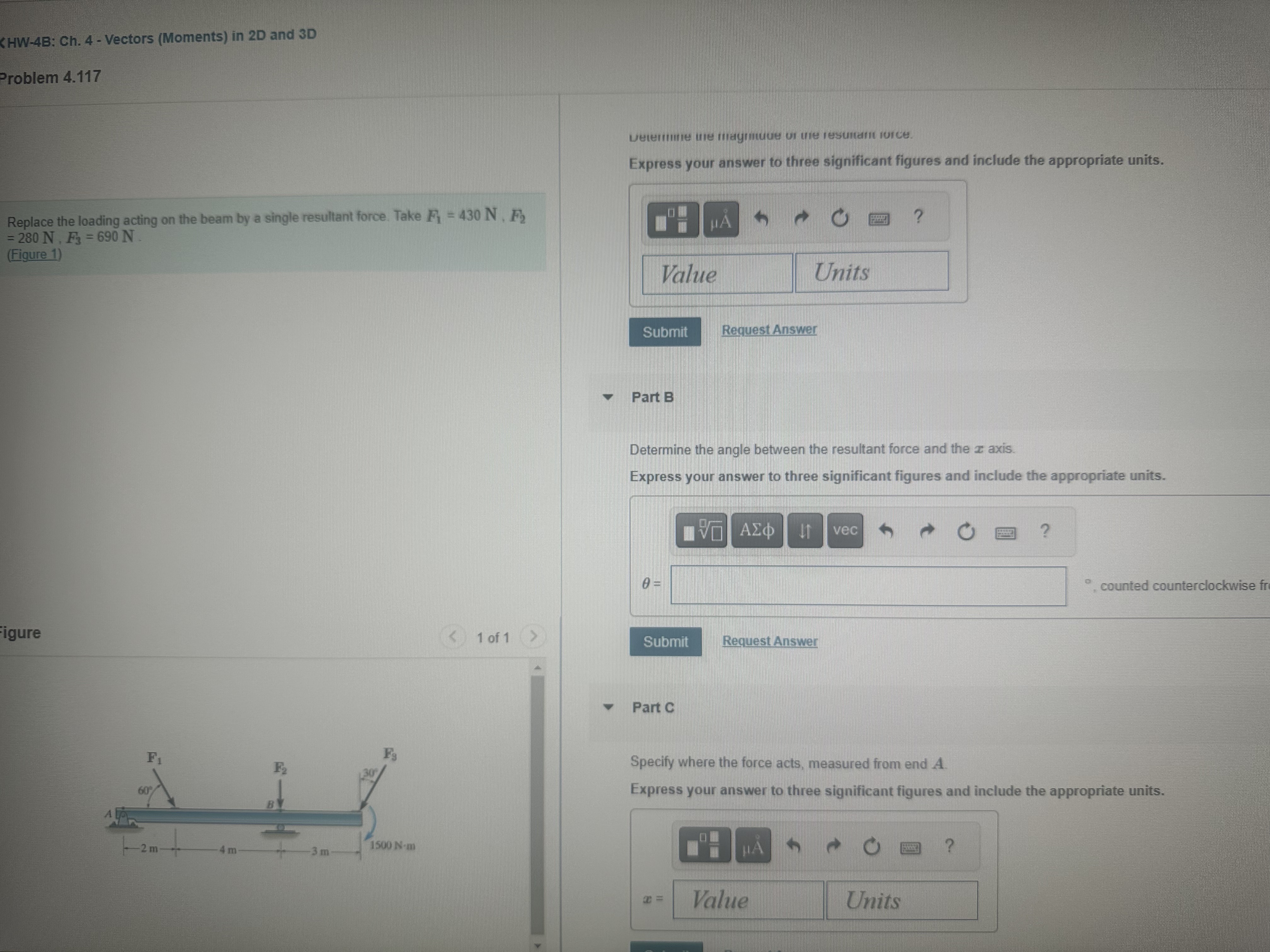

Problem $4\mathrm{.}117$

Replace the loading acting on the beam by a single resultant force. Take $F_1=430N,F_2=280N,F_3=690N.$

$($Figure $1)$

igure

$1$ of $1$

Determine we magntuue or we resultart lorce.

Express your answer to three significant figures and include the appropriate units.

Value Units

Submit

Request Answer

Part B

Determine the angle between the resultant force and the $x$ axis.

Express your answer to three significant figures and include the appropriate units.

Submit.

Request Answer

Part c

Specify where the force acts, measured from end $A.$

Express your answer to three significant figures and include the appropriate units.
