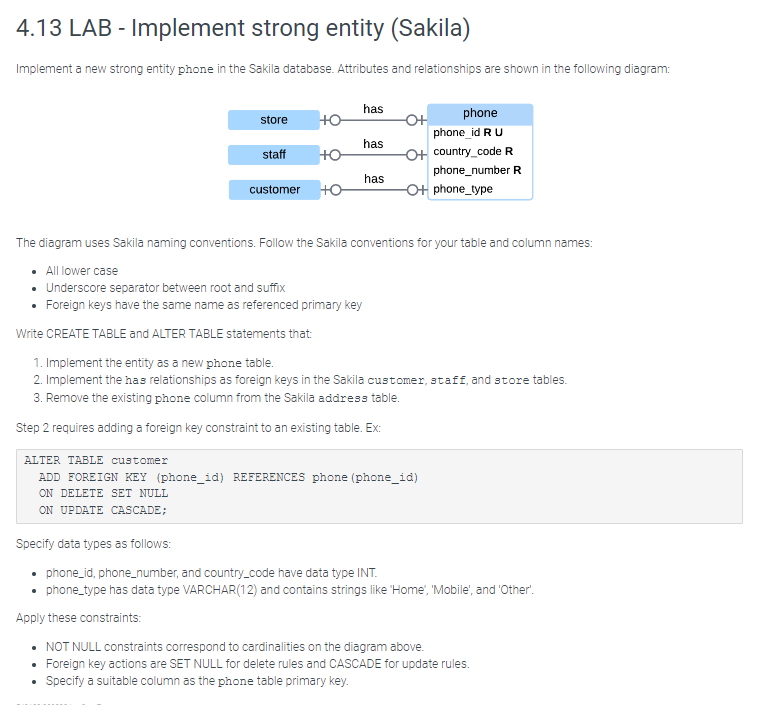

$4\mathrm{.}13$ LAB $-$ Implement strong entity $($Sakila$)$

Implement a new strong entity phone in the Sakila database. Attributes and relationships are shown in the following diagram:

The diagram uses Sakila naming conventions. Follow the Sakila conventions for your table and column names:

All lower case

Underscore separator between root and suffix

Foreign keys have the same name as referenced primary key

Write CREATE TABLE and ALTER TABLE statements that:

Implement the entity as a new phone table.

Implement the has relationships as foreign keys in the Sakila customer, staff, and store tables.

Remove the existing phone column from the Sakila address table.

Step $2$ requires adding a foreign key constraint to an existing table. Ex:

ALTER TABLE customer

ADD FOREIGN KEY $($phone$\_$id$)$ REFERENCES phone $($phone$\_$id$)$

ON DELETE SET NULL

ON UPDATE CASCADE;

Specify data types as follows:

phone$\_$id$,$ phone$\_$number, and country$\_$code have data type INT.

phone$\_$type has data type VARCHAR$(12)$ and contains strings like 'Home', 'Mobile', and 'Other'.

Apply these constraints:

NOT NULL constraints correspond to cardinalities on the diagram above.

Foreign key actions are SET NULL for delete rules and CASCADE for update rules.

Specify a suitable column as the phone table primary key.
