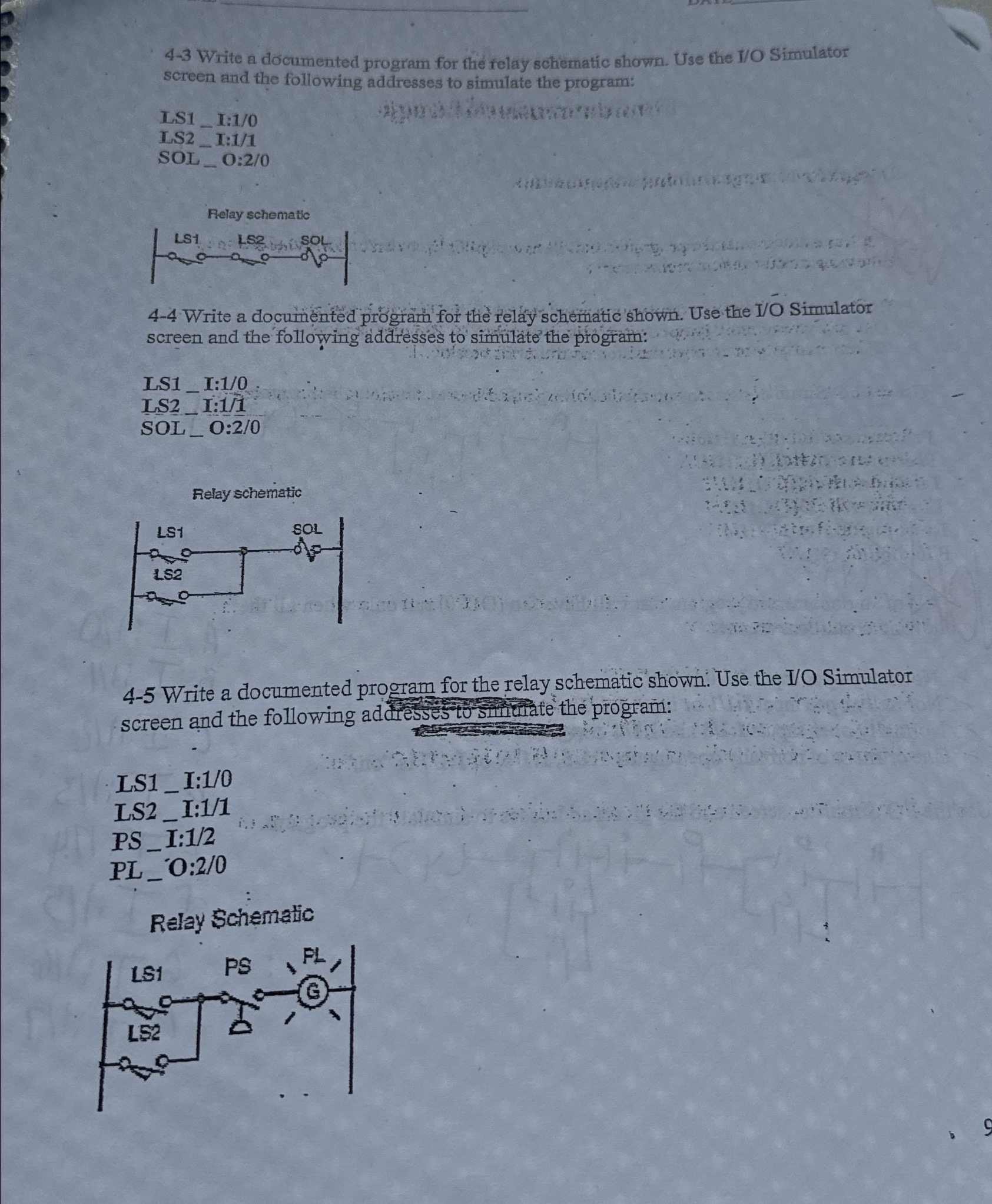

$4-3$ Write a documented program for the relay schematic shown. Use the I$/$O Simulator screen and the following addresses to simulate the program:

$LS{1}_{\text{I}}$:$\frac{1}{0}$

$IS{2}_{\text{I}}$:$\frac{1}{1}$

$SO{L}_O$:$\frac{2}{0}$

Relay schematic

$4-4.$ Write a documented program for the relay schematic shown. Use the I$/$O Simulator screen and the following addresses to simulate the program:

$LS{1}_{\text{I}}$:$\frac{1}{0}$

$LS{2}_{\text{I}}$:$\frac{1}{1}$

$SO{L}_O$:$\frac{2}{0}$

Felay schema$$ic

$4-5$ Write a documented program for the relay schematic shown. Use the I$/$O Simulator screen and the following addressestus sifinde the program:

$LS{1}_{\text{I}}$:$\frac{1}{0}$

$LS{2}_{\text{I}}$:$\frac{1}{1}$

$P{S}_{\text{I}}$:$\frac{1}{2}$

$P{L}_O$:$2$:$0$

Relay Schematic

ANSWER USING LOGIC GATES DIAGRAM
