Question: ( 4 5 points total ) For the beam shown below: a ) ( 5 points ) Determine the reaction force, R 1 , at

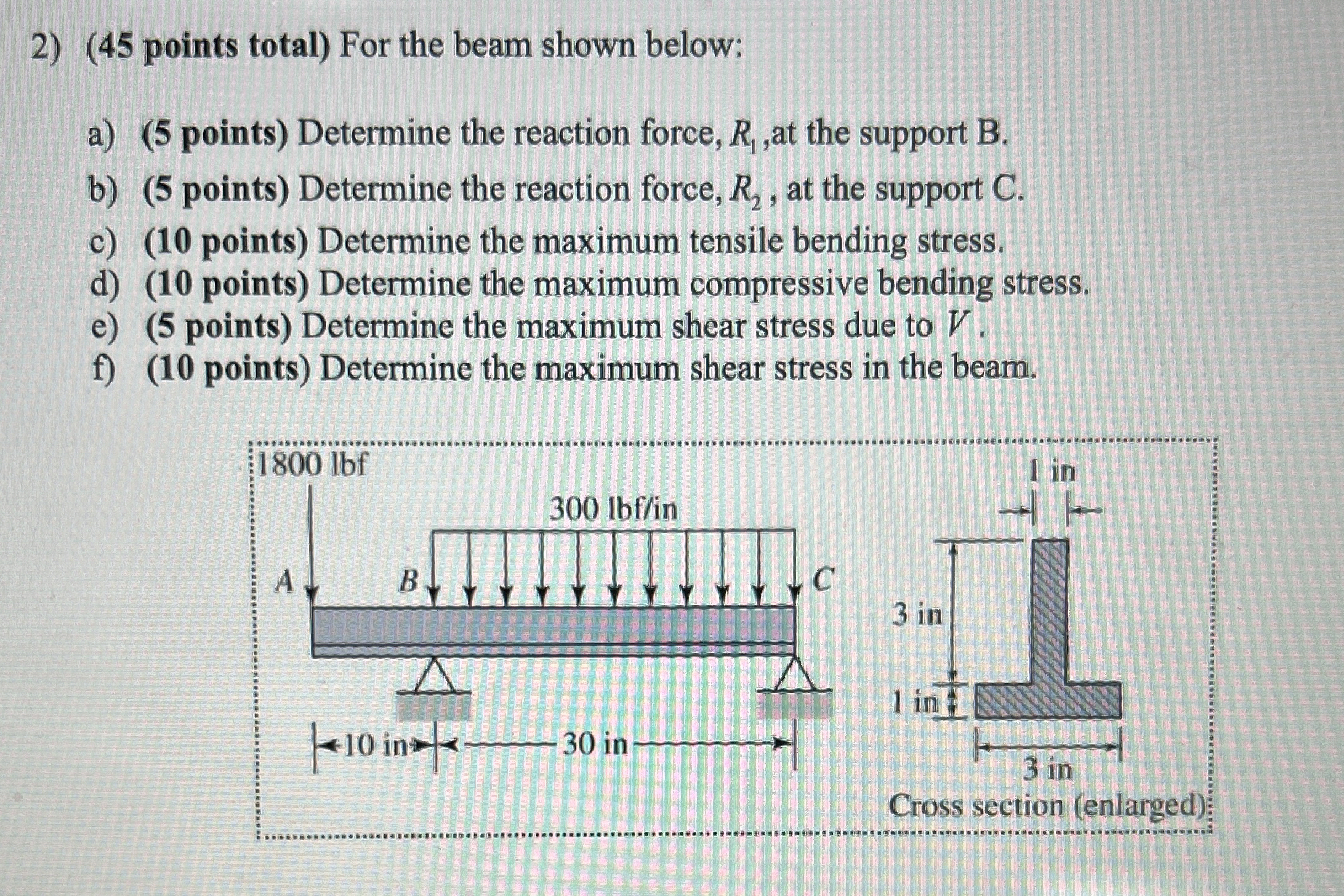

(45 points total) For the beam shown below:
a)(5 points) Determine the reaction force, R1, at the support B.
b)(5 points) Determine the reaction force, R2, at the support C.
c)(10 points) Determine the maximum tensile bending stress.
d)(10 points) Determine the maximum compressive bending stress.
e)(5 points) Determine the maximum shear stress due to V.
f)(10 points) Determine the maximum shear stress in the beam.
( 4 5 points total ) For the beam shown below: a
