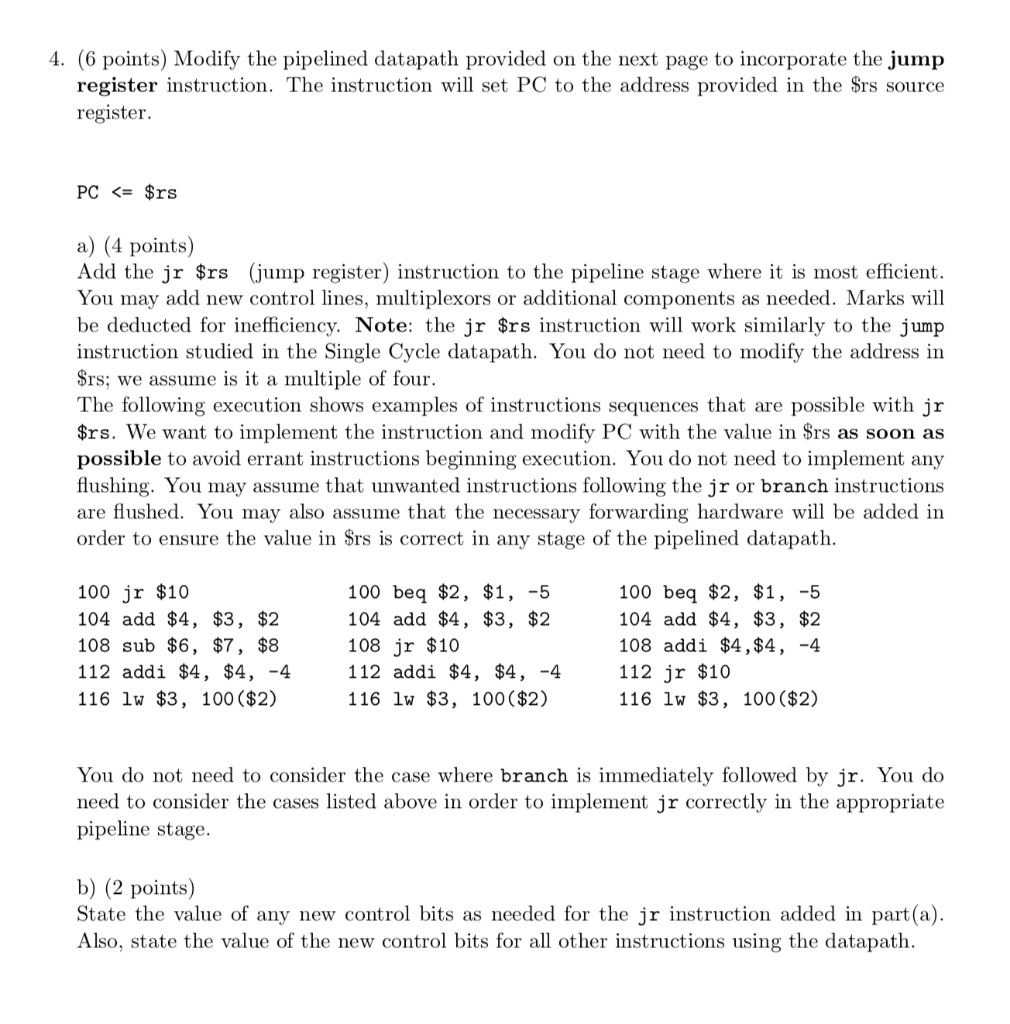

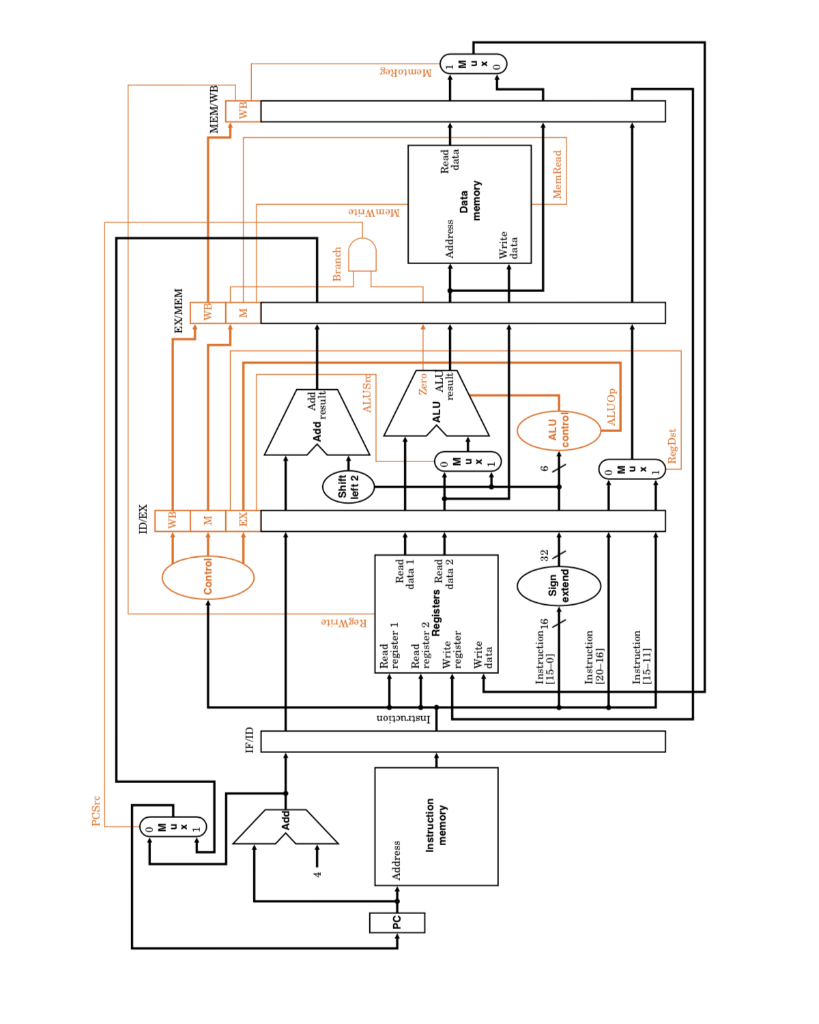

Question: 4. (6 points) Modify the pipelined datapath provided on the next page to incorporate the jump register instruction. The instruction will set PC to the

4. (6 points) Modify the pipelined datapath provided on the next page to incorporate the jump register instruction. The instruction will set PC

4. (6 points) Modify the pipelined datapath provided on the next page to incorporate the jump register instruction. The instruction will set PC to the address provided in the Srs source register. PC

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
