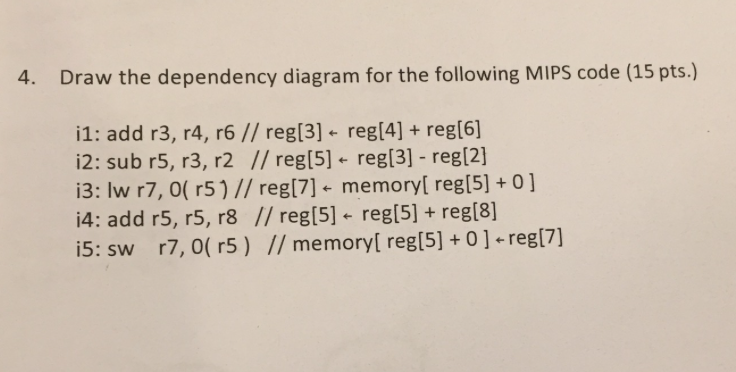

Question: 4. Draw the dependency diagram for the following MIPS code (15 pts.) il: add r3, r4, r6 // reg[3] reg[4] + reg[6] 12. Sub r5,

4. Draw the dependency diagram for the following MIPS code (15

4. Draw the dependency diagram for the following MIPS code (15 pts.) il: add r3, r4, r6 // reg[3] reg[4] + reg[6] 12. Sub r5, r3, r2 // reg[5] reg[3]-reg[2] i3: lw r7, 0( r5) // reg[7] memoryl reg[5] + 0] A: add r5, r5, r8 // reg[5] reg[5] + reg[8] i5: sw r7, 0( r5) //memoryl reg[5]+ 0] -regl7]
