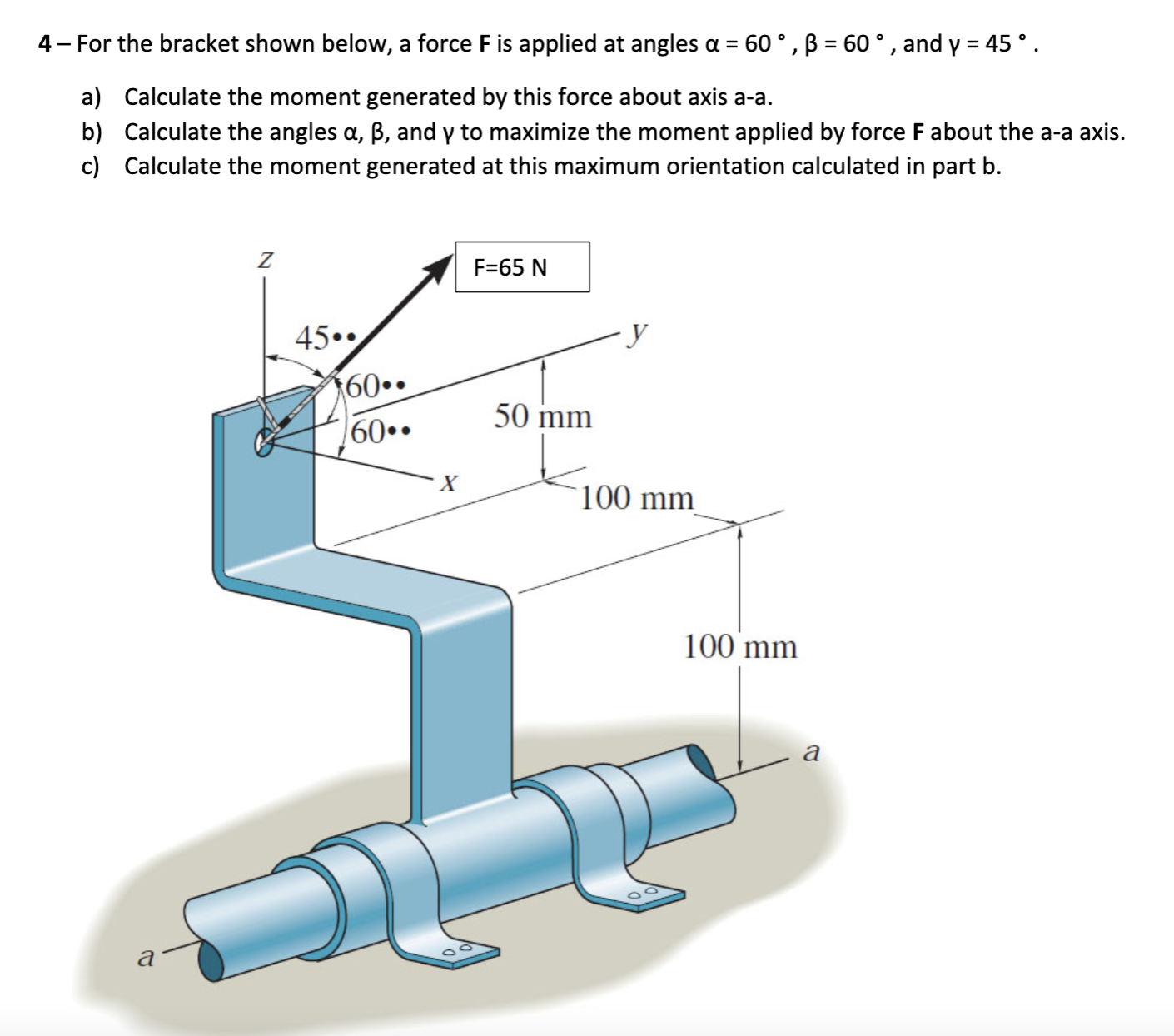

Question: 4 - For the bracket shown below, a force F is applied at angles = 6 0 , = 6 0 , and = 4

4- For the bracket shown below, a force F is applied at angles =60,=60, and =45.
a) Calculate the moment generated by this force about axis a-a.
b) Calculate the angles ,, and to maximize the moment applied by force F about the a-a axis.
c) Calculate the moment generated at this maximum orientation calculated in part b.
4 - For the bracket shown below, a force F is
