Question: 5 . 1 Determine the maximum lateral central point load which can be carried in its strongest direction by a 1 5 0 m m

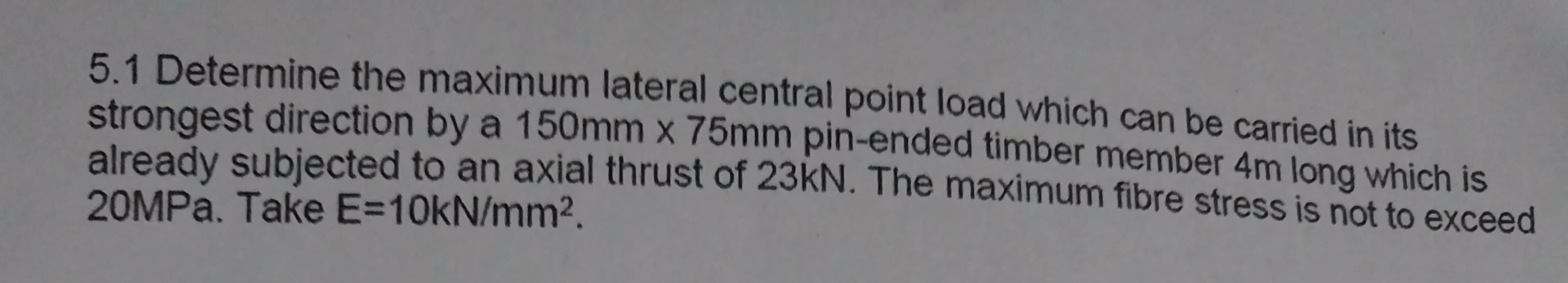

5.1 Determine the maximum lateral central point load which can be carried in its
strongest direction by a 150mm75mm pin-ended timber member 4m long which is
already subjected to an axial thrust of 23kN. The maximum fibre stress is not to exceed
20MPa. Take E=10kNmm2.
5 . 1 Determine the maximum lateral central point

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
