Question: 5. (25 points) During the algorithm for transforming a transition graph to a regular expression, we have reached the following GNFA. Perform one more step

5. (25 points) During the algorithm for transforming a transition graph

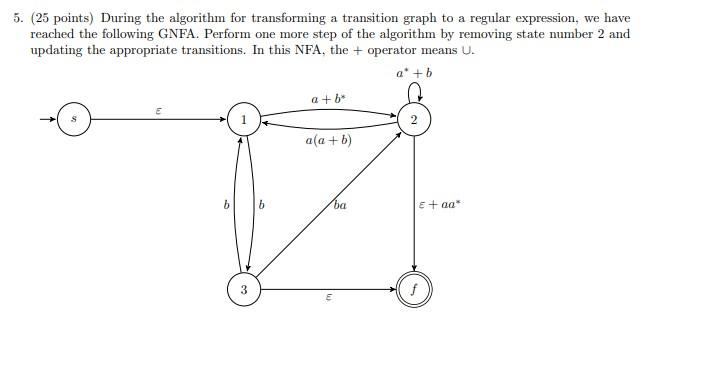

5. (25 points) During the algorithm for transforming a transition graph to a regular expression, we have reached the following GNFA. Perform one more step of the algorithm by removing state number 2 and updating the appropriate transitions. In this NFA, the + operator means U

Step by Step Solution

There are 3 Steps involved in it
