Question: 5. Determine the current in the potential dierence across, and the power dissipated by the 12 D resistors in the circuit below. 12!} -1 1m.I

5. Determine the current in the potential dierence across, and the

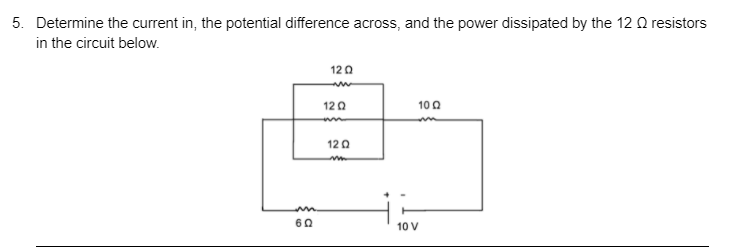

5. Determine the current in the potential dierence across, and the power dissipated by the 12 D resistors in the circuit below. 12!} \"-1 1m.I

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
