Question: ( 5 pts ) For a feedback control system, following transfer function models are given: g p ( s ) = 3 s + 1

(5 pts ) For a feedback control system, following transfer function models are given:
gp(s)=3s+1(10s+1)(2s+1)(5s+1);,gc(s)=kc;,gf(s)=gm(s)=1

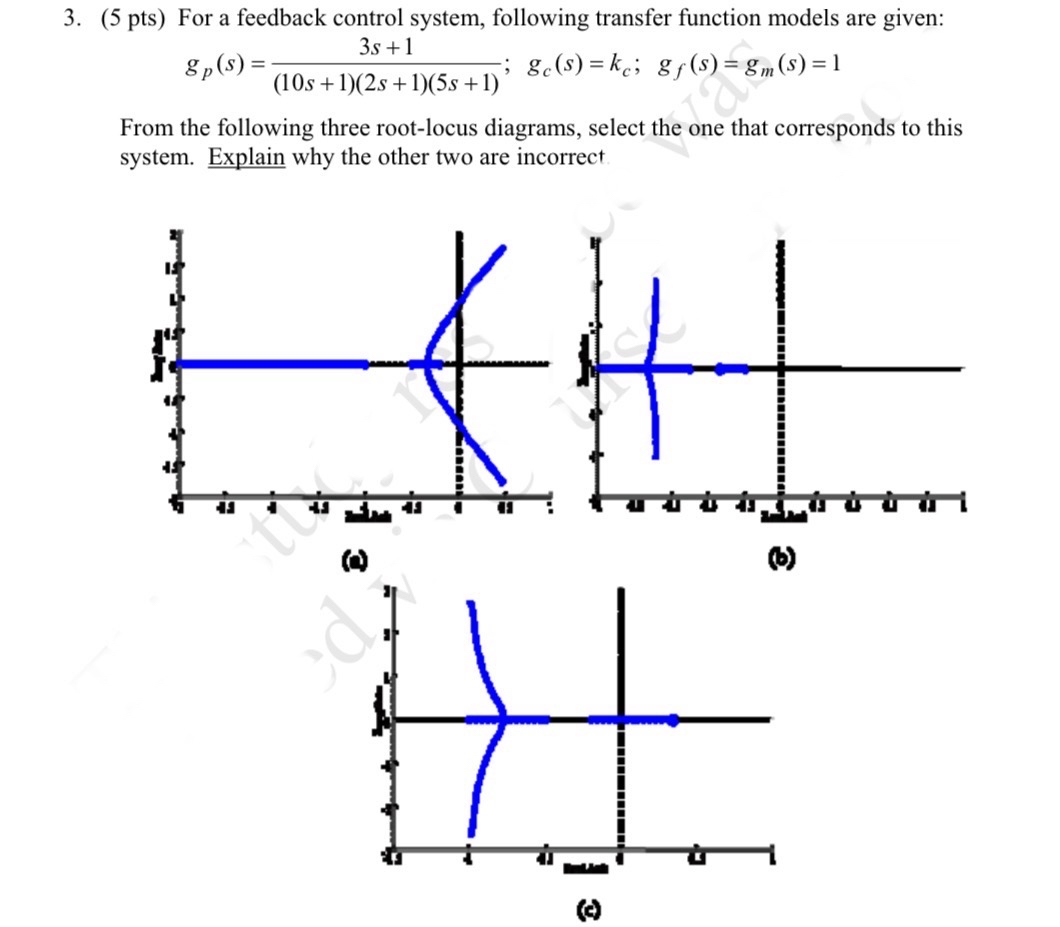

From the following three root-locus diagrams, select the one that corresponds to this system. Explain why the other two are incorrect
(d)
(b)
(c)
( 5 pts ) For a feedback control system,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
