Question: 5 . The feedback control system shown below is given by: a . ( 2 points ) What type of compensation is shown in the

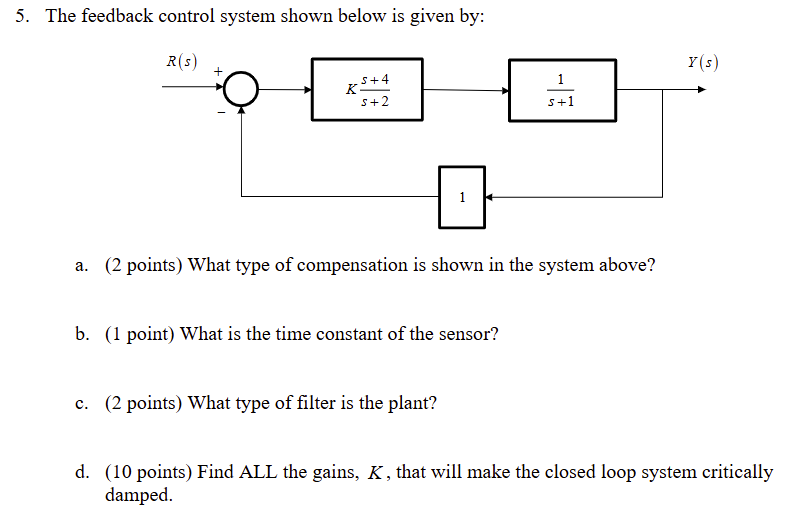

5. The feedback control system shown below is given by:
a.(2 points) What type of compensation is shown in the system above?
b.(1 point) What is the time constant of the sensor?
c.(2 points) What type of filter is the plant?
d.(10 points) Find ALL the gains, \( K \), that will make the closed loop system critically damped.
5 . The feedback control system shown below is
