Question: 6 . 0 Using a method of the Joint, Section or a combination of Section and Joint, compute all the member forces for the truss

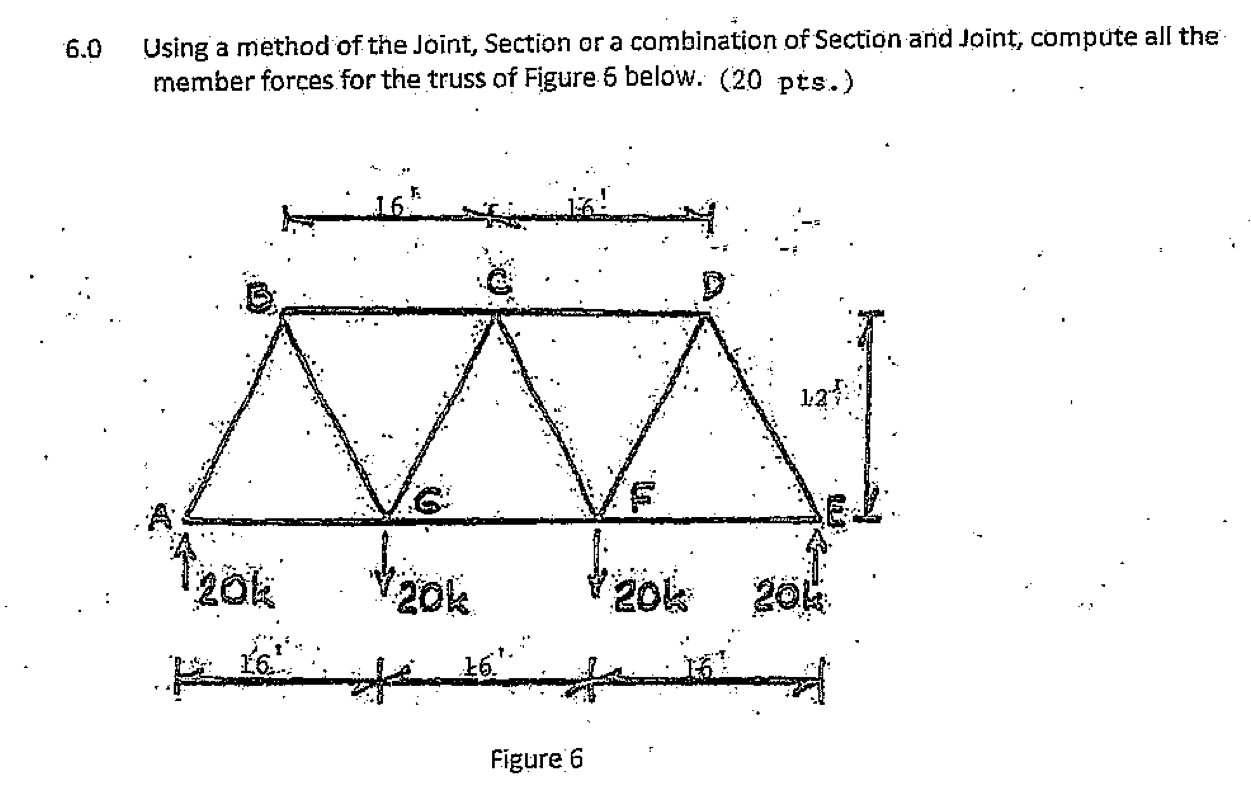

6.0 Using a method of the Joint, Section or a combination of Section and Joint, compute all the member forces for the truss of Figure 6 below. (20 pts.)
Figure 6
