Question: 6 . 3 4 Consider an external compression inlet with two ramps operating in a Mach - 2 . 5 stream of air. Calculate the

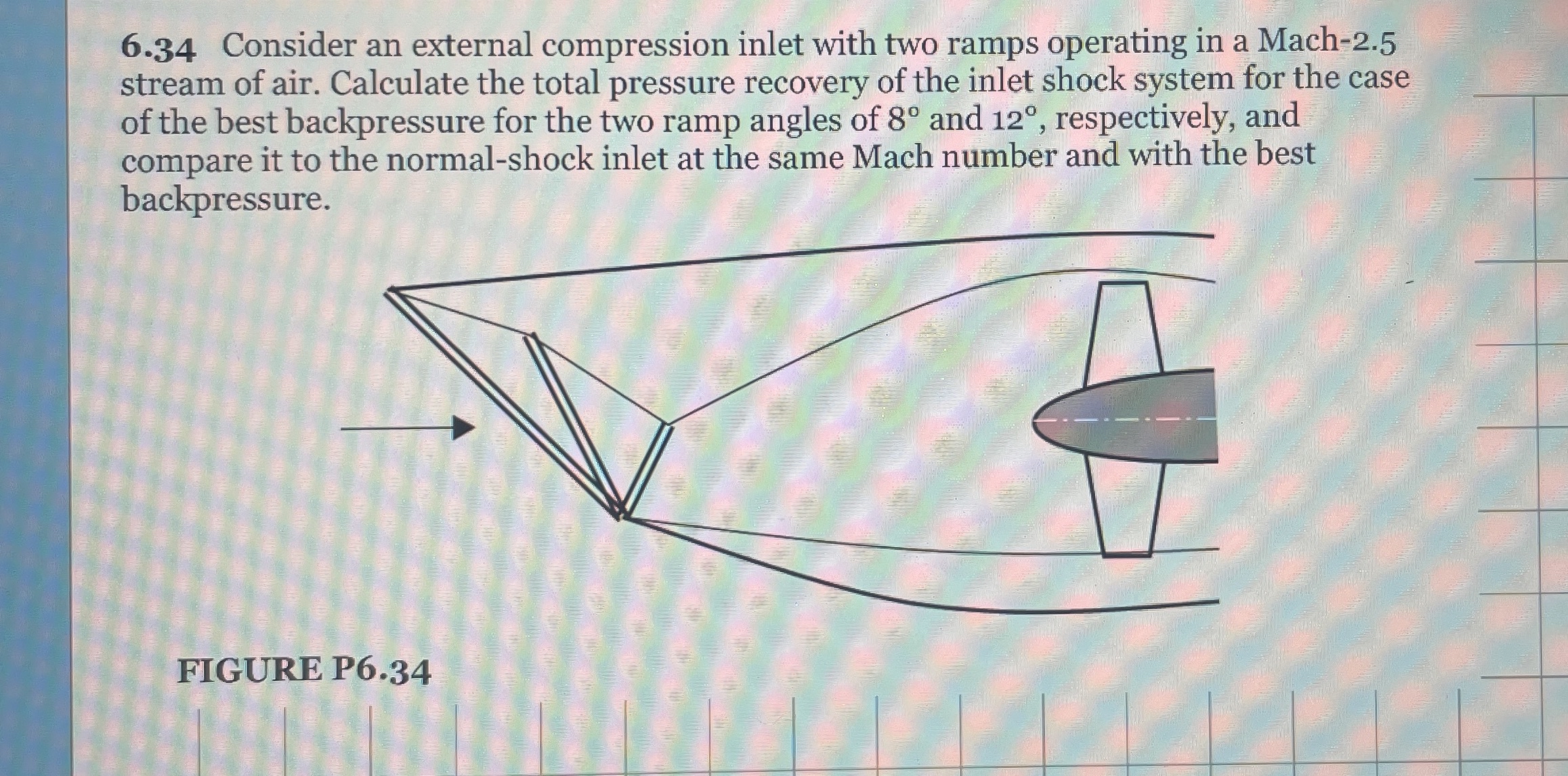

6.34 Consider an external compression inlet with two ramps operating in a Mach-2.5 stream of air. Calculate the total pressure recovery of the inlet shock system for the case of the best backpressure for the two ramp angles of 8 and 12, respectively, and compare it to the normal-shock inlet at the same Mach number and with the best backpressure.
FIGURE P6.34
6 . 3 4 Consider an external compression inlet

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
