Question: 6 . 8 4 Solve Prob. 6 . 8 3 , assuming that a 6 - mm - thick plate is bent to form

"6.84 Solve Prob. 6.83, assuming that a 6-mm-thick plate is bent to

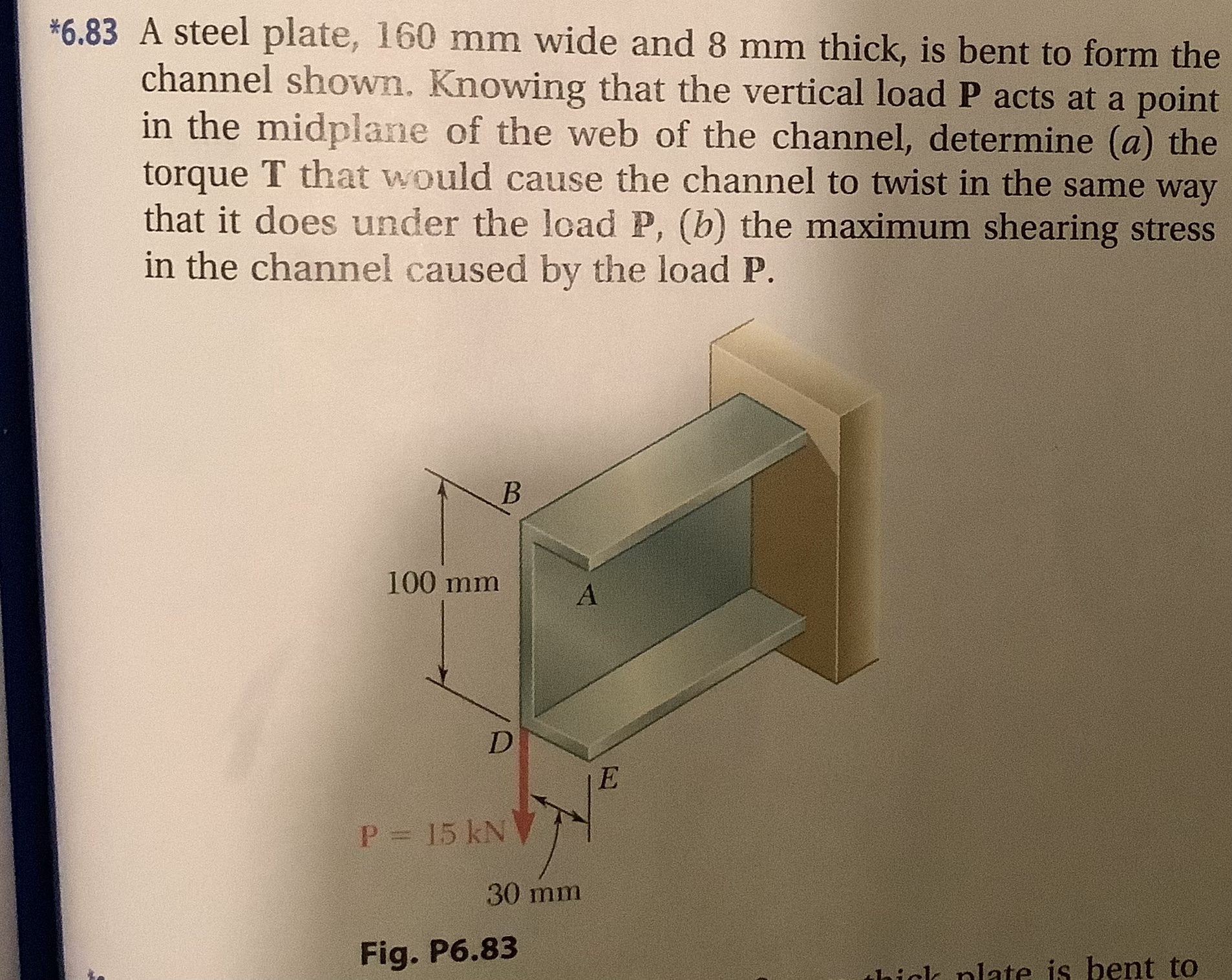

form the channel shown. *6.83 A steel plate, 160mm wide and 8mm thick, is bent to form the
channel shown. Knowing that the vertical load P acts at a point
in the midplane of the web of the channel, determine (a) the
torque T that would cause the channel to twist in the same way
that it does under the load P,(b) the maximum shearing stress
in the channel caused by the load P.
Fig. P6.83
" 6 . 8 4 Solve Prob. 6 . 8 3 , assuming that a 6
