Question: 6. Answer the following questions for the program sequence below. LDI R16, OB01111011 LDI R17, 0x86 SUB R16, R17 a. (5 Points) Determine the values

6. Answer the following questions for the program sequence below. LDI

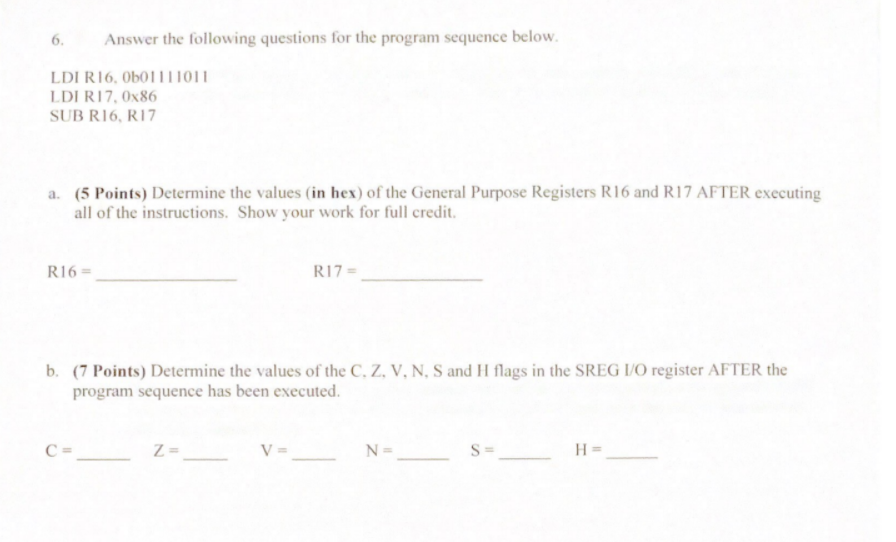

6. Answer the following questions for the program sequence below. LDI R16, OB01111011 LDI R17, 0x86 SUB R16, R17 a. (5 Points) Determine the values (in hex) of the General Purpose Registers R16 and R17 AFTER executing all of the instructions. Show your work for full credit R16 R17 b. (7 Points) Determine the values of the C. Z, V, N, S and H flags in the SREG I/O register AFTER the program sequence has been executed. Z= V = N= S H=

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
