Question: 6. For the network shown in the figure below: B Por Start - Finish a. Indicate what is the critical path? b. Devise the PERT

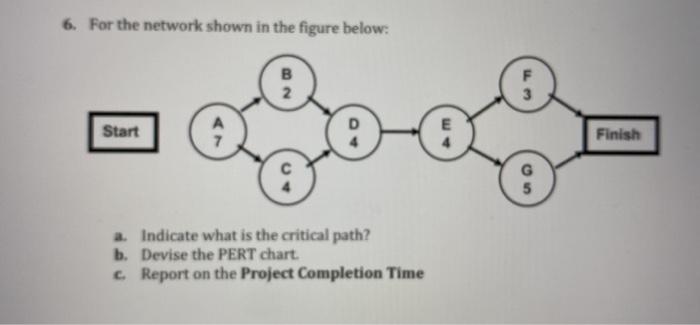

6. For the network shown in the figure below: B Por Start - Finish a. Indicate what is the critical path? b. Devise the PERT chart. c. Report on the Project Completion Time

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related General Management Questions!

3. (1.7 pts. total) For the network shown in the figure below: B D F Finish 2 5 6 A Start 1 C E 3 3 a) Calculate the Early and Late Start and Finish times of each of the activity. (1.2 pts.) b)...

4. For the network shown in the figure below: B 2 D 5 A 1 F 6 3 E 3 a. Indicate what is the critical path? b. Devise the PERT chart. c. Report on the Project Completion Time

5. For the network shown in the figure below: B D 7 2 E 3 F 6 a. Indicate what is the critical path? b. Devise the PERT chart. c. Report on the Project Completion Time
