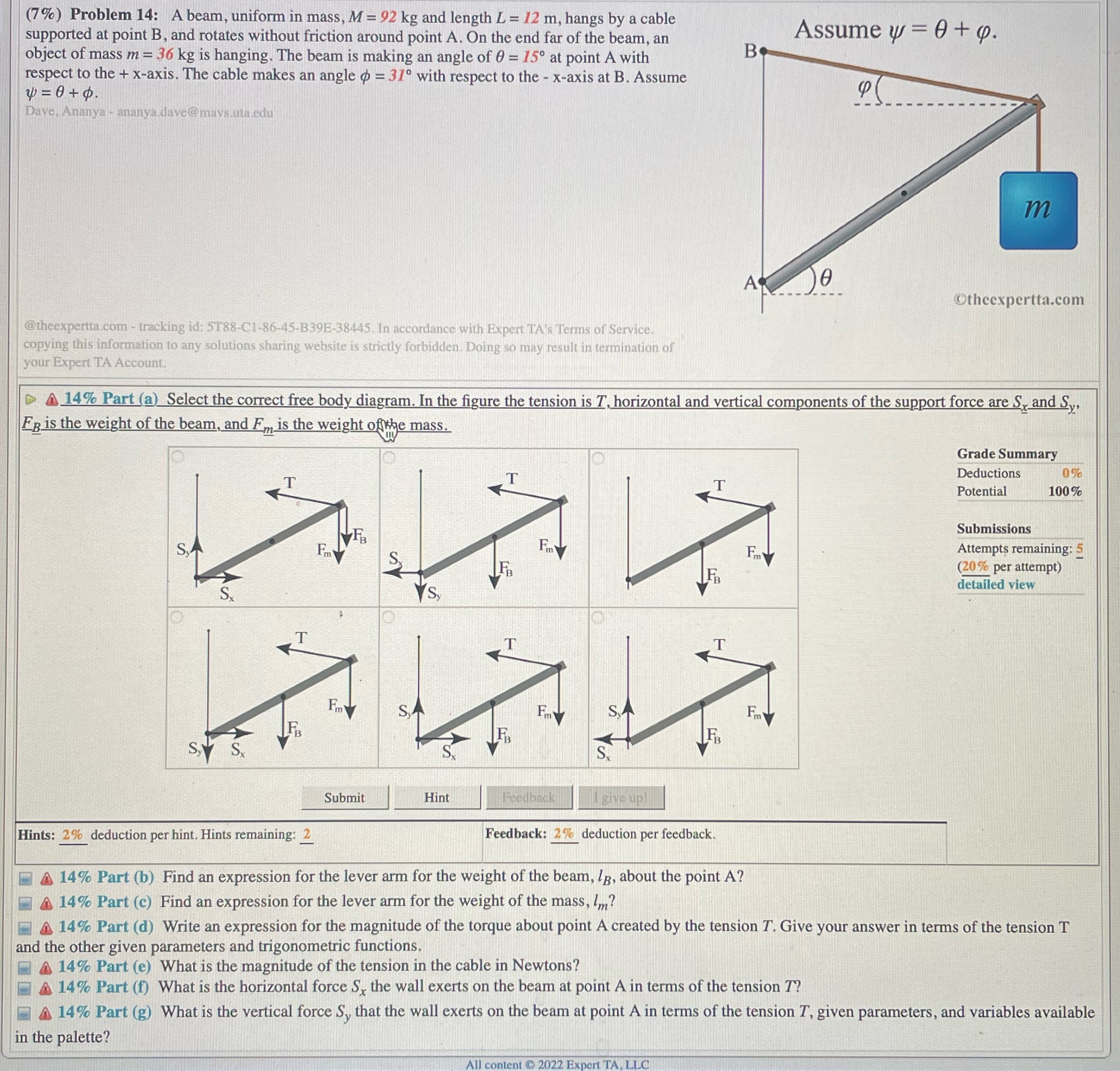

(7%) Problem 14: A beam, uniform in mass, M = 92 kg and length L = 12 m, hangs by a cable supported at point B, and rotates without friction around point A. On the end far of the beam, an Assume y = 0 + q. object of mass m = 36 kg is hanging. The beam is making an angle of 0 = 150 at point A with B respect to the + x-axis. The cable makes an angle d = 310 with respect to the - x-axis at B. Assume 4 =0+$. Dave, Ananya - ananya dave @mays.uta.edu m Otheexpertta.com @theexpertta.com - tracking id: 5188-C1-86-45-B39E-38445. In accordance with Expert TA's Terms of Service. copying this information to any solutions sharing website is strictly forbidden. Doing so may result in termination of your Expert TA Account. D A 14% Part (a) Select the correct free body diagram. In the figure the tension is 7, horizontal and vertical components of the support force are S, and Sy, FB is the weight of the beam, and Fm is the weight of the mass. Grade Summary Deductions Potential 100% Submissions Attempts remaining: S (20% per attempt) VSy detailed view Sy Submit Hint Feedback give up! Hints: 2% deduction per hint. Hints remaining: 2 Feedback: 2% deduction per feedback 4 14% Part (b) Find an expression for the lever arm for the weight of the beam, Ig, about the point A? 14% Part (c) Find an expression for the lever arm for the weight of the mass, Im? 4 14% Part (d) Write an expression for the magnitude of the torque about point A created by the tension T. Give your answer in terms of the tension T and the other given parameters and trigonometric functions. 4 14% Part (e) What is the magnitude of the tension in the cable in Newtons? 4 14% Part (f) What is the horizontal force S, the wall exerts on the beam at point A in terms of the tension T? A 14% Part (g) What is the vertical force S, that the wall exerts on the beam at point A in terms of the tension T, given parameters, and variables available in the palette
