Question: 8 8 In the following VHDL code, if input a changes to 'l' at time 20ns and no other inputs change after that time, at

8 8 In the following VHDL code, if input a changes to 'l' at time 20ns and no other inputs change after that

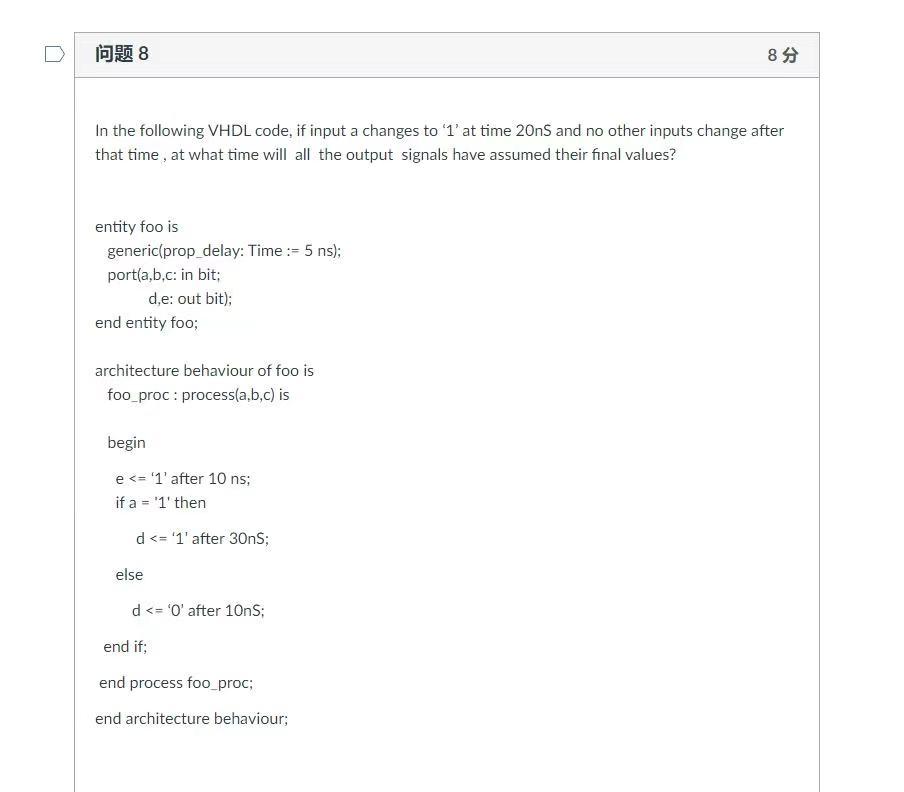

8 8 In the following VHDL code, if input a changes to 'l' at time 20ns and no other inputs change after that time, at what time will all the output signals have assumed their final values? entity foo is generic(prop delay: Time := 5 ns); port(a,b,c: in bit; d.e: out bit); end entity foo; architecture behaviour of foo is foo_proc: process(a,b,c) is begin e

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

In the following VHDL code, if input a changes to l'at time 20ns and no other inputs change after that time , at what time will all the output signals have assumed their final values? entity foo is...
