Question: In the following VHDL code, if input a changes to l'at time 20ns and no other inputs change after that time , at what time

In the following VHDL code, if input a changes to l'at

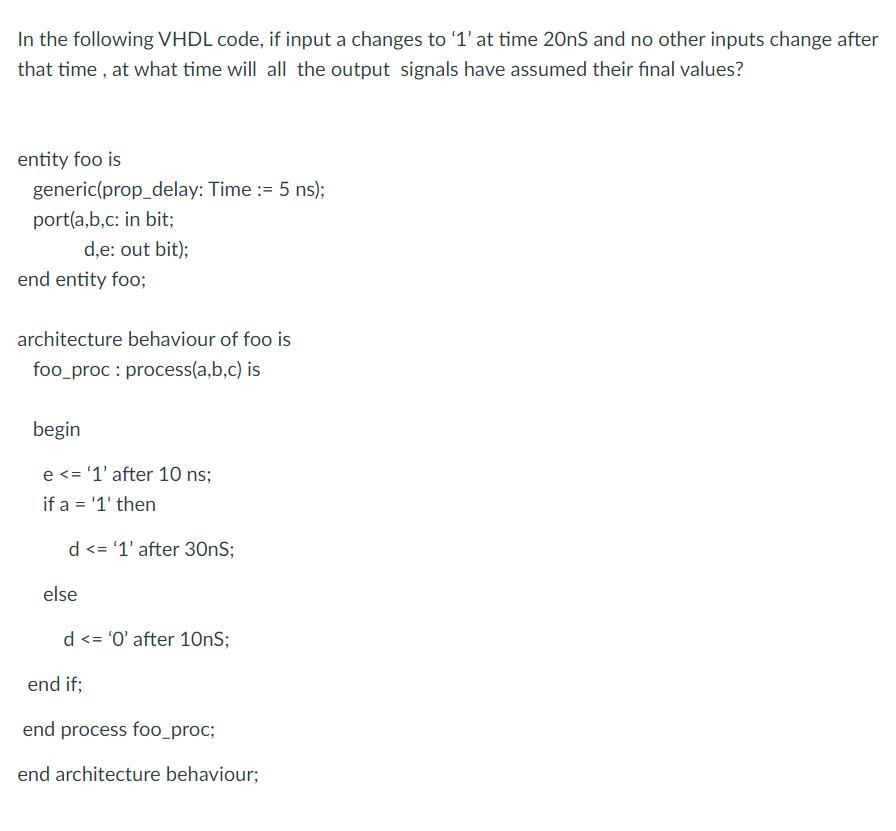

In the following VHDL code, if input a changes to l'at time 20ns and no other inputs change after that time , at what time will all the output signals have assumed their final values? entity foo is generic(prop_delay: Time := 5 ns); port(a,b,c: in bit; de: out bit); end entity foo; architecture behaviour of foo is foo_proc : process(a,b,c) is begin e

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
