Question: 8 ) A rigid weightless bracket, attached to a wall, is subject to a distributed load, ( mathrm { w } = 6

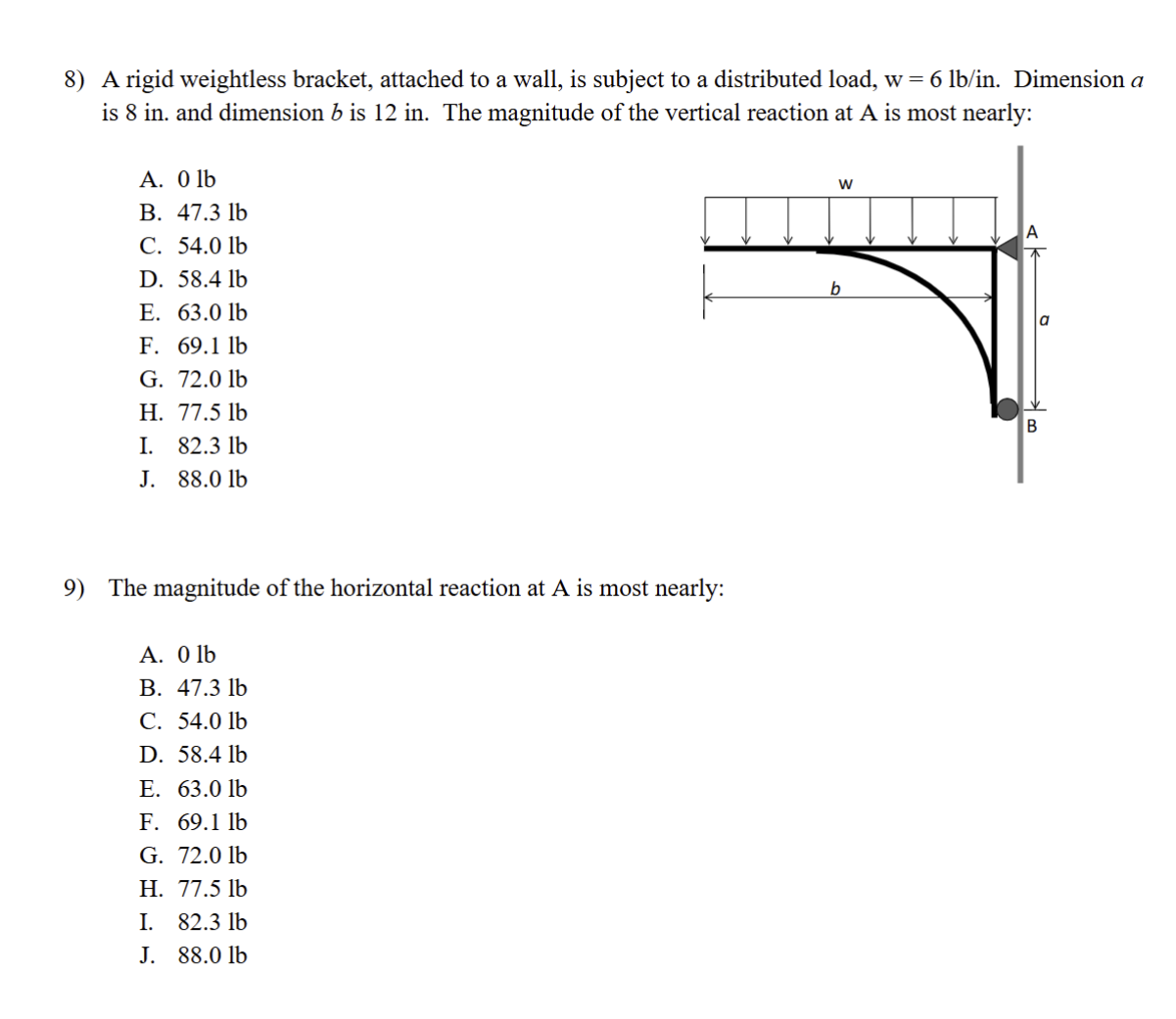

8) A rigid weightless bracket, attached to a wall, is subject to a distributed load, \(\mathrm{w}=6\mathrm{lb}/\mathrm{in}\). Dimension \( a \) is 8 in . and dimension \( b \) is 12 in . The magnitude of the vertical reaction at A is most nearly:
A.0 lb
B.47.3 lb
C.54.0 lb
D.58.4 lb
E.63.0 lb
F.69.1 lb
G.72.0 lb
H.77.5 lb
I. 82.3 lb
J.88.0 lb
9) The magnitude of the horizontal reaction at A is most nearly:
A.0 lb
B.47.3 lb
C.54.0 lb
D.58.4 lb
E.63.0 lb
F.69.1 lb
G.72.0 lb
H.77.5 lb
I. 82.3 lb
J.88.0 lb
8 ) A rigid weightless bracket, attached to a
