Question: 9 Figure 2 5 - 2 3 shows a parallel - plate capacitor with a plate area A = 6 . 1 5 cm ^

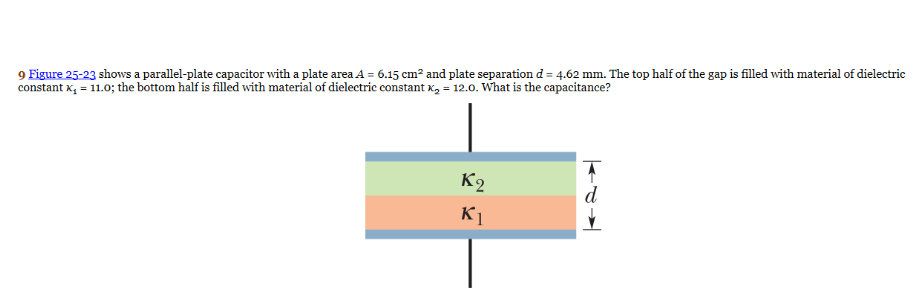

9 Figure 25-23 shows a parallel-plate capacitor with a plate area A=6.15cm^(2) and plate separation d=4.62mm. The top half of the gap is filled with material of dielectric
constant \kappa _(1)=11.0; the bottom half is filled with material of dielectric constant \kappa _(2)=12.0. What is the capacitance?
