Question: A 3 6 - N axial force at B is required to open the spring - loaded plunger of the water nozzle. Determine the required

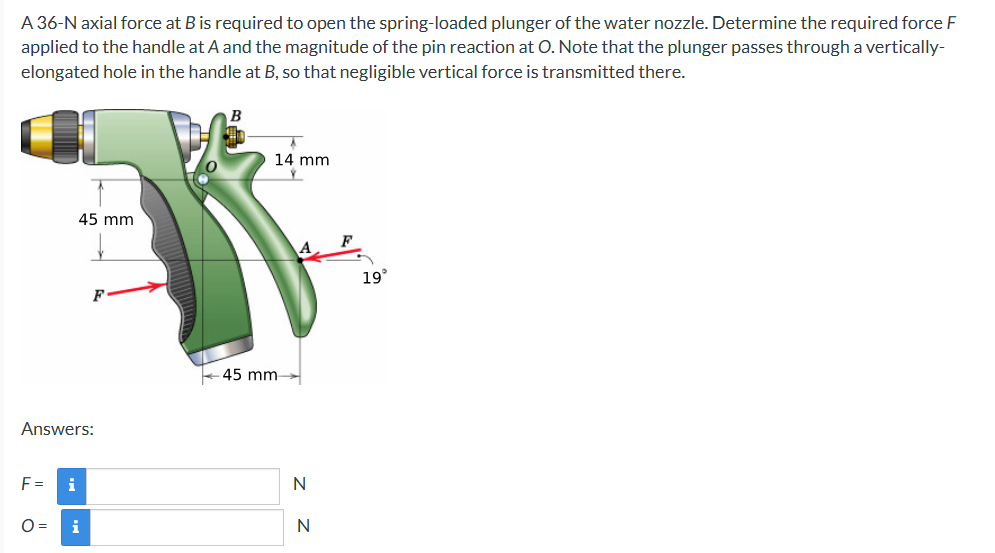

A36-N axial force at B is required to open the spring-loaded plunger of the water nozzle. Determine the required force F
applied to the handle at A and the magnitude of the pin reaction at O. Note that the plunger passes through a vertically-
elongated hole in the handle at B, so that negligible vertical force is transmitted there.
Answers:
F=
N
0=
N
A 3 6 - N axial force at B is required to open
