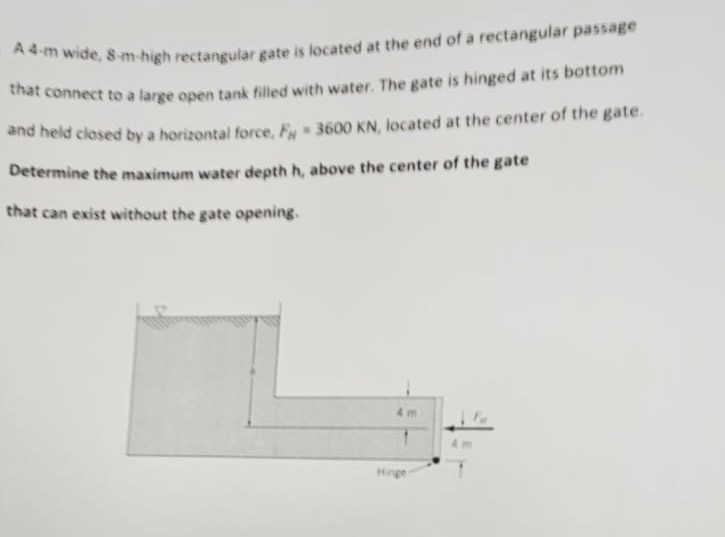

Question: A 4 * m wide, 8 * m - high rectangular gate is located at the end of a rectangular passage that connect to a

4 * m

wide,

8 * m -

high rectangular gate is located at the end of a rectangular passage that connect to a large open tank filled with water. The gate is hinged at its bottom and held closed by a horizontal force,

F_{H} = 3600 K N,

located at the center of the gate.

Determine the maximum water depth h

,

above the center of the gate that can exist without the gate opening.

A 4 * m wide, 8 * m - high rectangular gate is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
