Question: A B C D E F G I ES ID EF SL Description LS DUR LF ID Task Successors Duration A Task 1 B,C 3

A B C D E F G I ES ID EF SL Description LS DUR LF

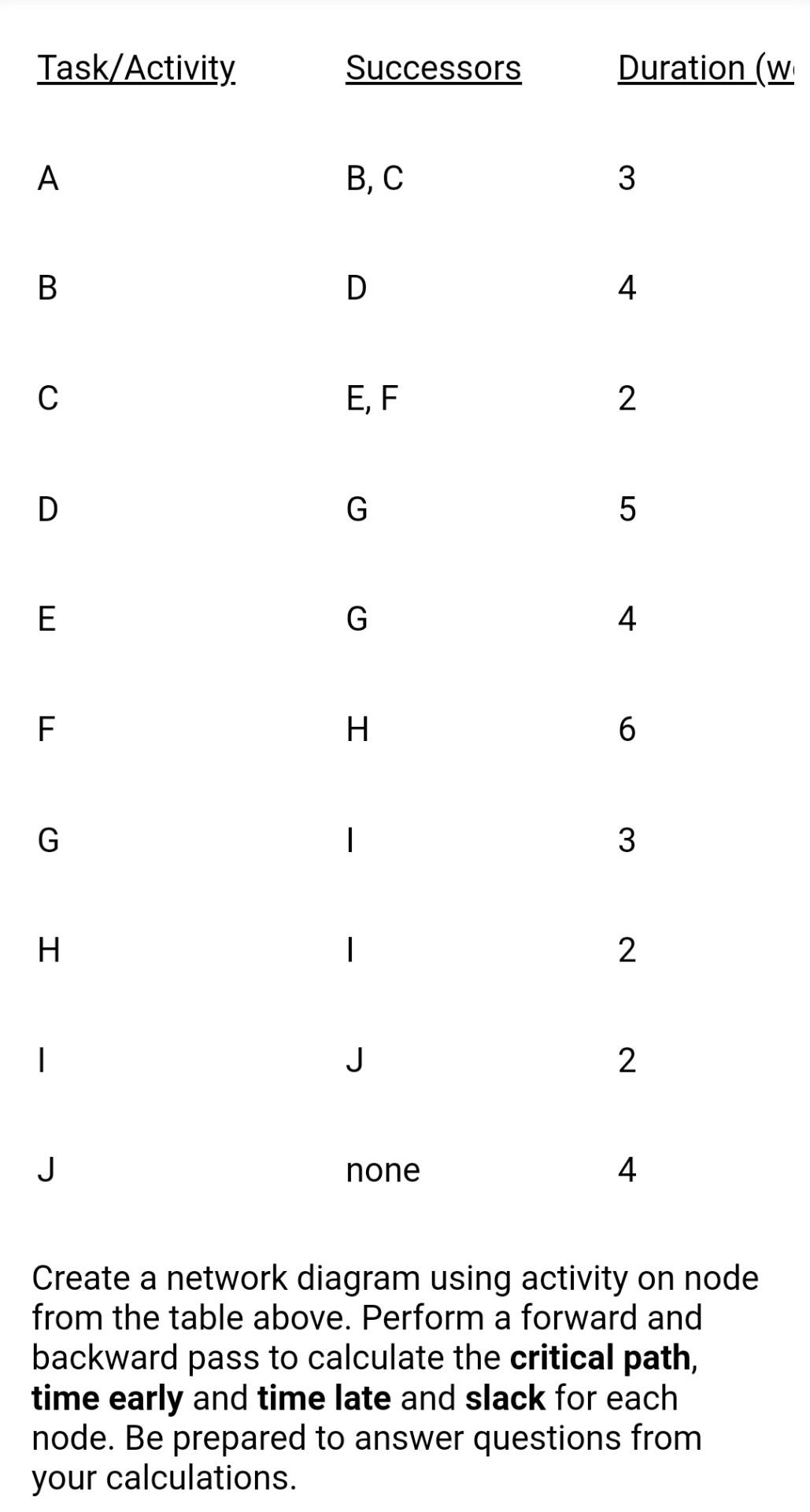

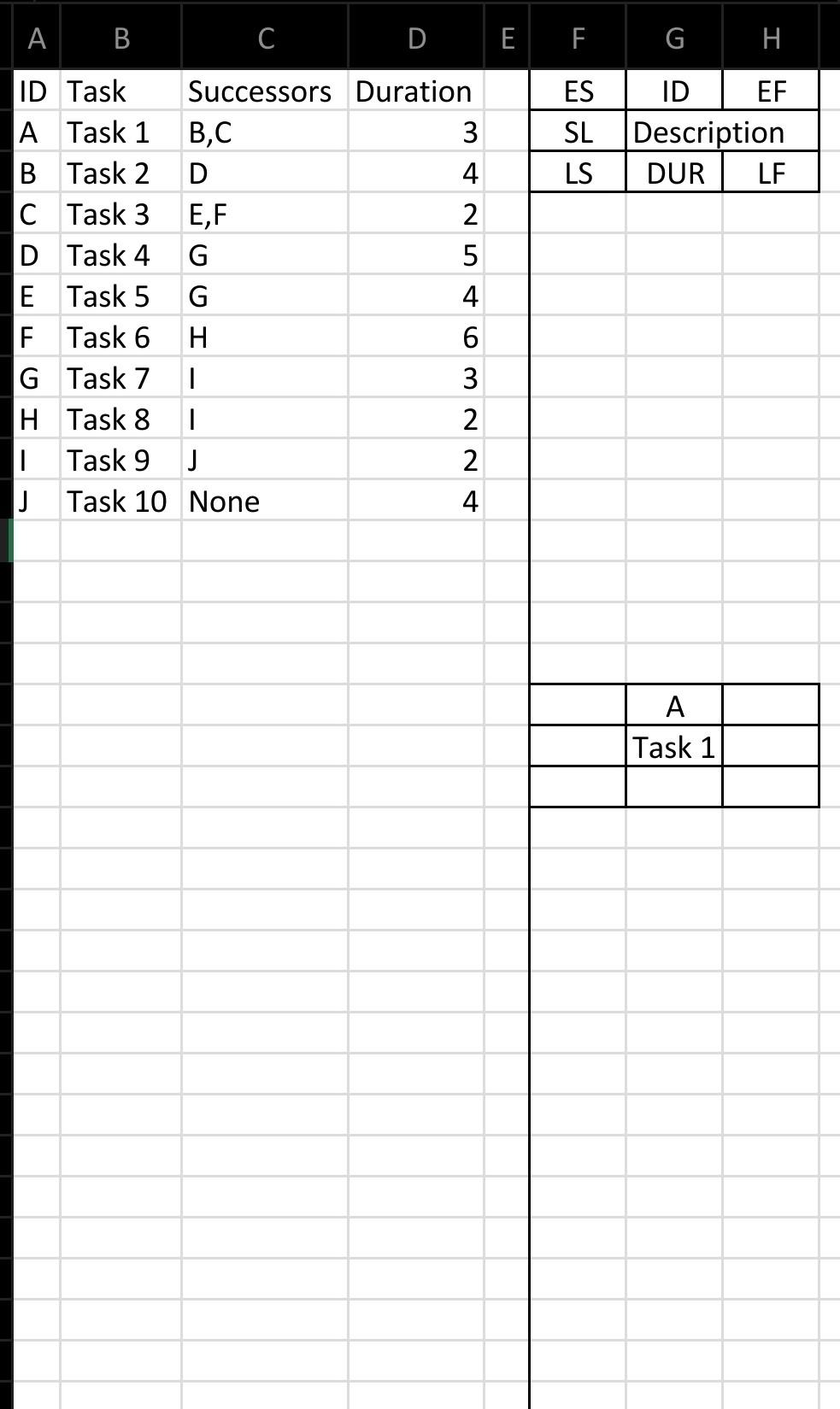

A B C D E F G I ES ID EF SL Description LS DUR LF ID Task Successors Duration A Task 1 B,C 3 B Task 2 D 4 C Task 3 E,F 2 D Task 4 G 5 E Task 5 G 4 F Task 6 . 6 G Task 7 I 3 H Task 8 1 2 0 Task 9 J 2 J Task 10 None 4 Om Nn A Task 1 Task/Activity Successors Duration (w B, C 3 B D 4 E, F 2 D G 5 E G 4. F. H 6 G 1 3 H 1 2 1 J 2 J none 4 Create a network diagram using activity on node from the table above. Perform a forward and backward pass to calculate the critical path, time early and time late and slack for each node. Be prepared to answer questions from your calculations

Step by Step Solution
