Question: TASK 2 (MANUAL NETWORK DIAGRAM CALCULATIONS) - 20 MARKS You are completing a group assignment. Given the project network that follows, complete the forward and

TASK 2 (MANUAL NETWORK DIAGRAM CALCULATIONS) - 20

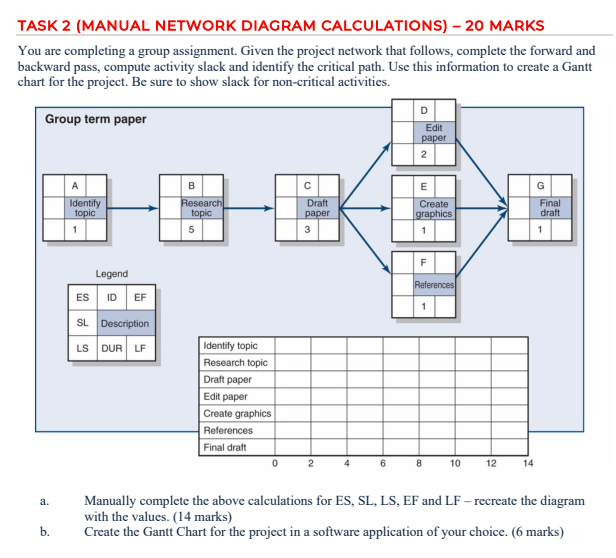

TASK 2 (MANUAL NETWORK DIAGRAM CALCULATIONS) - 20 MARKS You are completing a group assignment. Given the project network that follows, complete the forward and backward pass, compute activity slack and identify the critical path. Use this information to create a Gantt chart for the project. Be sure to show slack for non-critical activities. D Group term paper Edit paper 2 B E G A Identify topic Research topic 5 Draft paper 3 Create graphics Final draft 1 References Legend ES ID EF SL Description LS DUR LF Identify topic Research topic Draft paper Edit paper Create graphics References Final dratt 0 2 6 8 10 12 14 a. Manually complete the above calculations for ES, SL, LS, EF and LF - recreate the diagram with the values. (14 marks) Create the Gantt Chart for the project in a software application of your choice. (6 marks) b

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
