Question: a ) b ) Find the Lead compensator so that the dominant closed loop poles are at s = - 1 . 2 5 +

a)

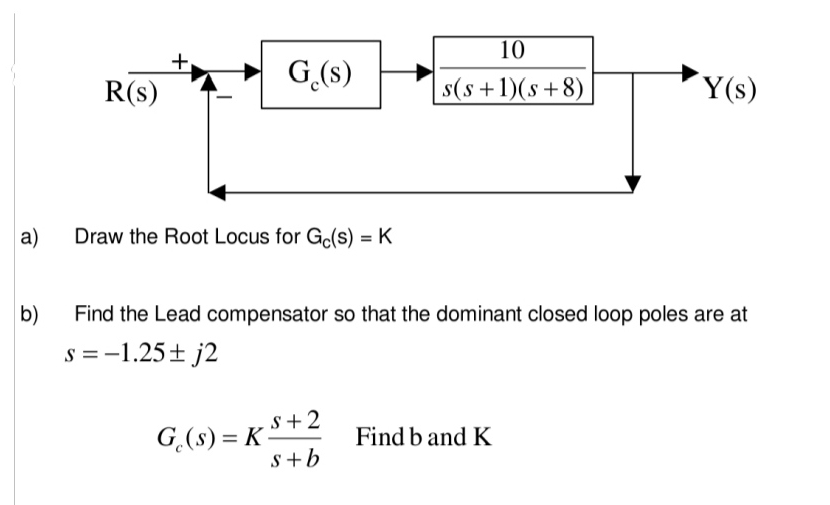

b) Find the Lead compensator so that the dominant closed loop poles are at
s=-1.25+-j2
Gc(s)=Ks+2s+b, Find b and K
a ) b ) Find the Lead compensator so that the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
