Question: A balanced Y connected source with the line voltage 4 0 0 V ( rms ) is connected to a balanced load of 1 0

A balanced

Y

connected source with the line voltage

400

(

rms

)

is connected to a balanced

load of

10 + j 8

per phase. Resistance of

R_{x} = 8.3

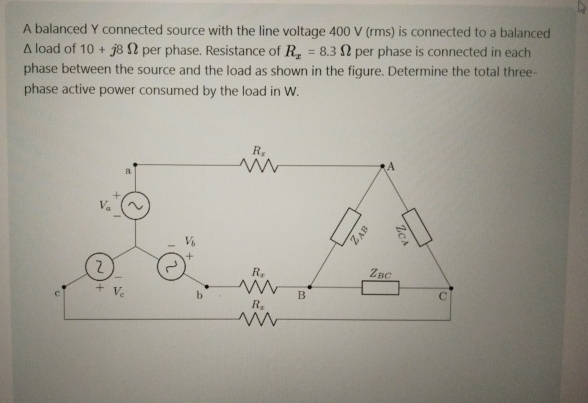

per phase is connected in each phase between the source and the load as shown in the figure. Determine the total threephase active power consumed by the load in

W .
