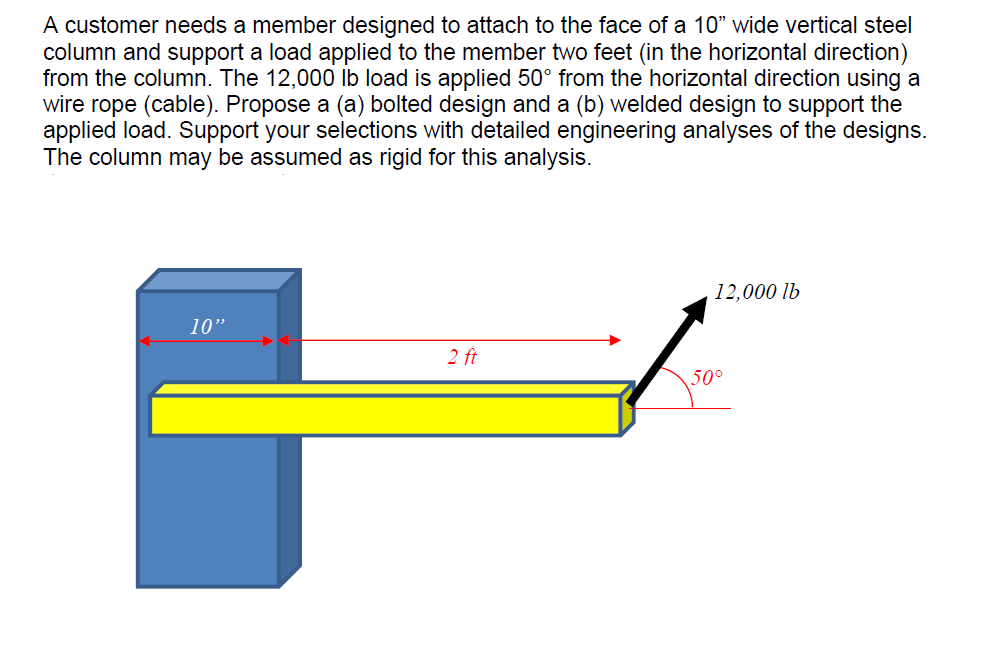

A customer needs a member designed to attach to the face of a $10"$ wide vertical steel

column and support a load applied to the member two feet $($in the horizontal direction$)$

from the column. The $12,000lb$ load is applied $50$ from the horizontal direction using a

wire rope $($cable$).$ Propose a $($a$)$ bolted design and a $($b$)$ welded design to support the

applied load. Support your selections with detailed engineering analyses of the designs.

The column may be assumed as rigid for this analysis.
