Question: A double - loop planar structure shown in the figure below is made out of a thin wire with the resistance per unit length r

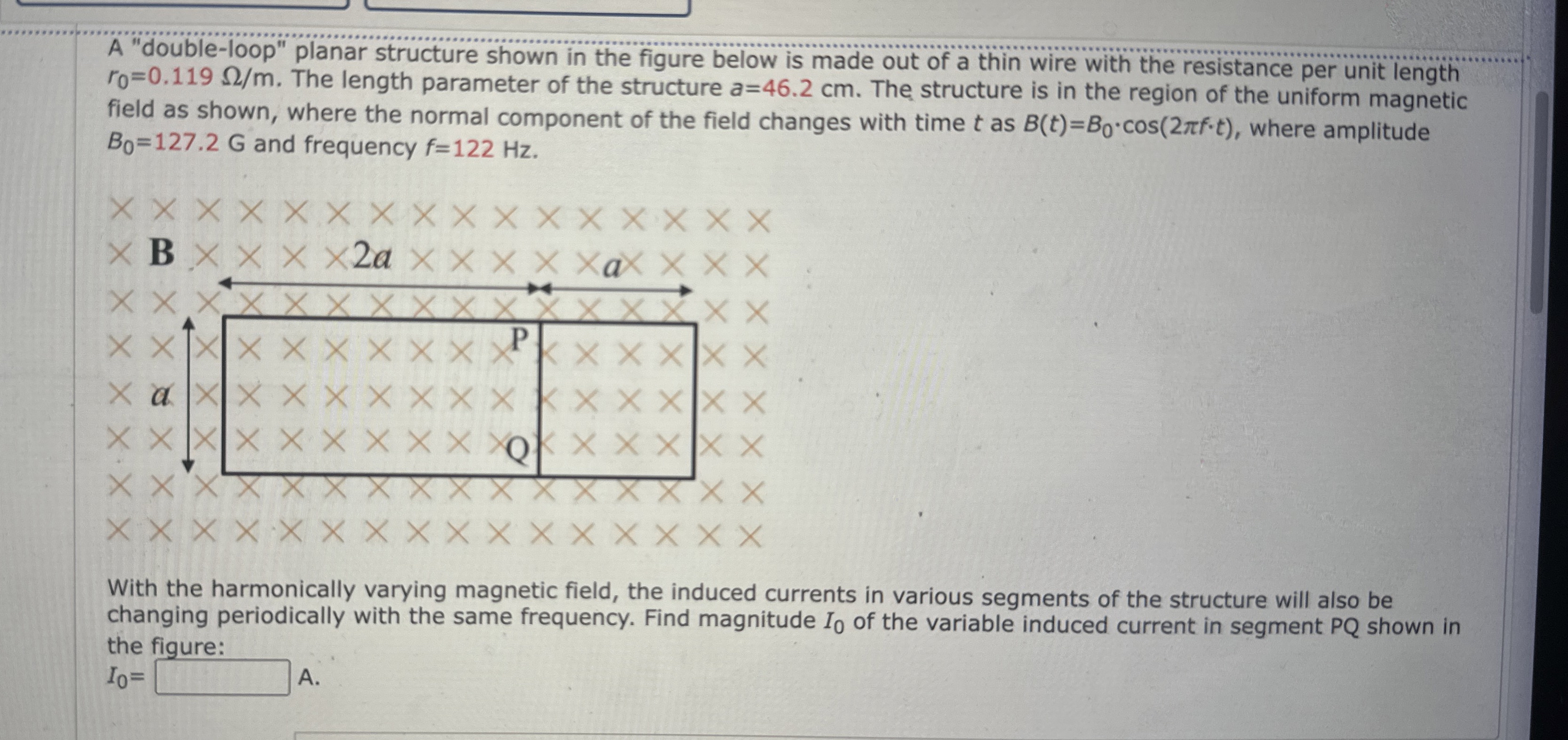

A "doubleloop" planar structure shown in the figure below is made out of a thin wire with the resistance per unit length The length parameter of the structure The structure is in the region of the uniform magnetic field as shown, where the normal component of the field changes with time as where amplitude and frequency
With the harmonically varying magnetic field, the induced currents in various segments of the structure will also be changing periodically with the same frequency. Find magnitude of the variable induced current in segment PQ shown in the fiaure:
