A flow shop with parallel processors consists of m processing stages in series with unlimited capacity buffers between the stage successive stages, and each stage i, (i =1, 2, . . , m) is made of mi parallel identical machines, as shown in the figure. In the line, n parts of various types are processed. Each part must be processed without preemption on each machine sequentially. That is, each part must be processed in stage 1 through stage m in that order. Each part requires m operations, each on a different stage. The order of processing the parts in every stage is identical and determined by an input sequence in which the parts enter the line, that is, a so-called permutation flow shop is considered. The processing time on some machines may have a value of zero.

The main decisions in the operation of the flow shop are assigned and schedule the

parts to the machines in each stage, that is, to determine the order in which the parts are to be processed on the different machines of each stage. Propose a methodology for achieving such decisions such that all the parts are completed in a minimum time that is to minimize the makespan?.

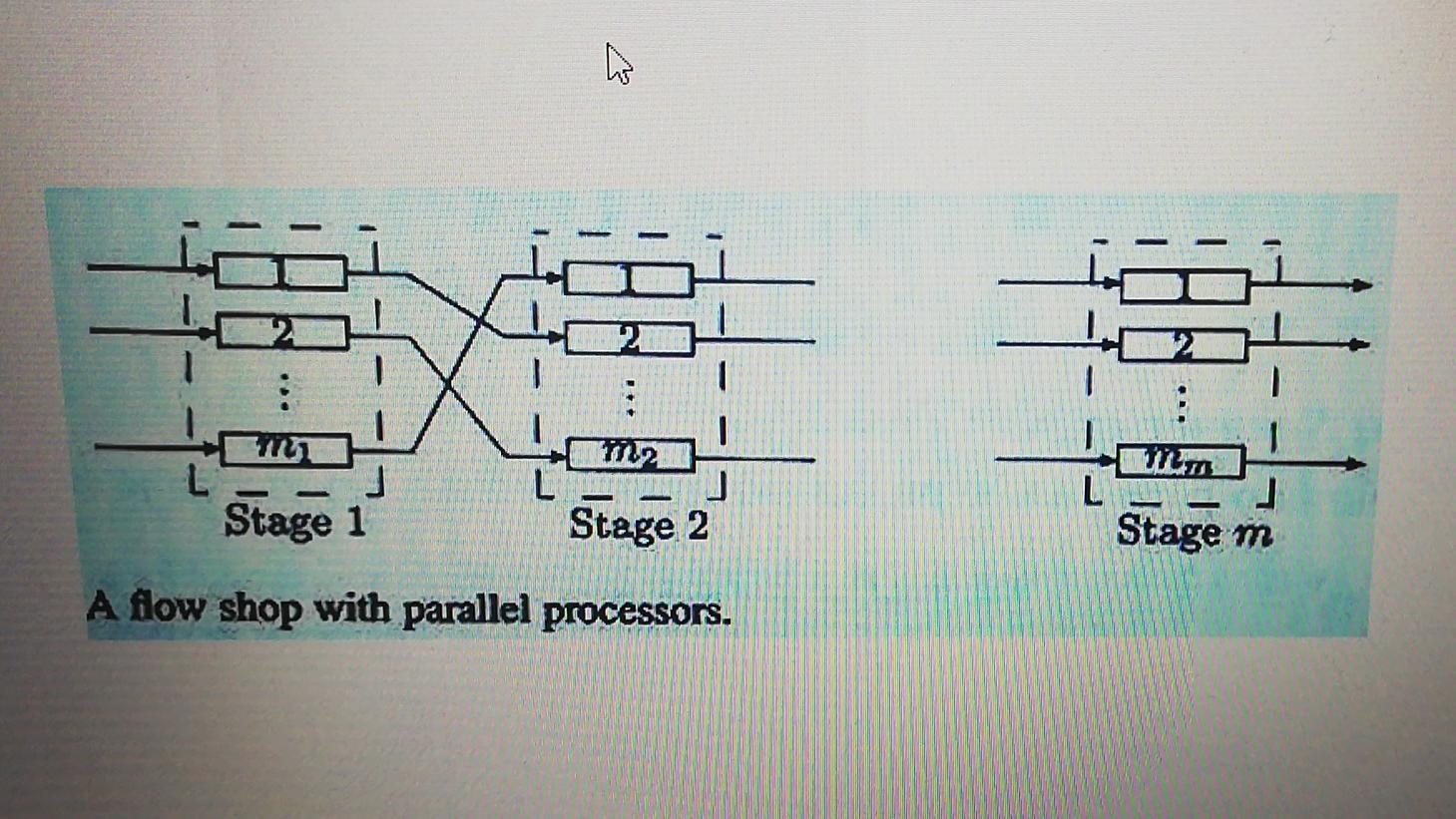

L Stage 1 LABUAN Stage 2 L J Stage m A flow shop with parallel processors
