Question: A: For the truss shown below. classity determinate, Statically indeterminate, or unstable B: consider the same truss. For loading shown below, Find zero force members

A: For the truss shown below.
classity
determinate, Statically indeterminate, or unstable
B: consider the same truss. For loading shown below, Find zero force members

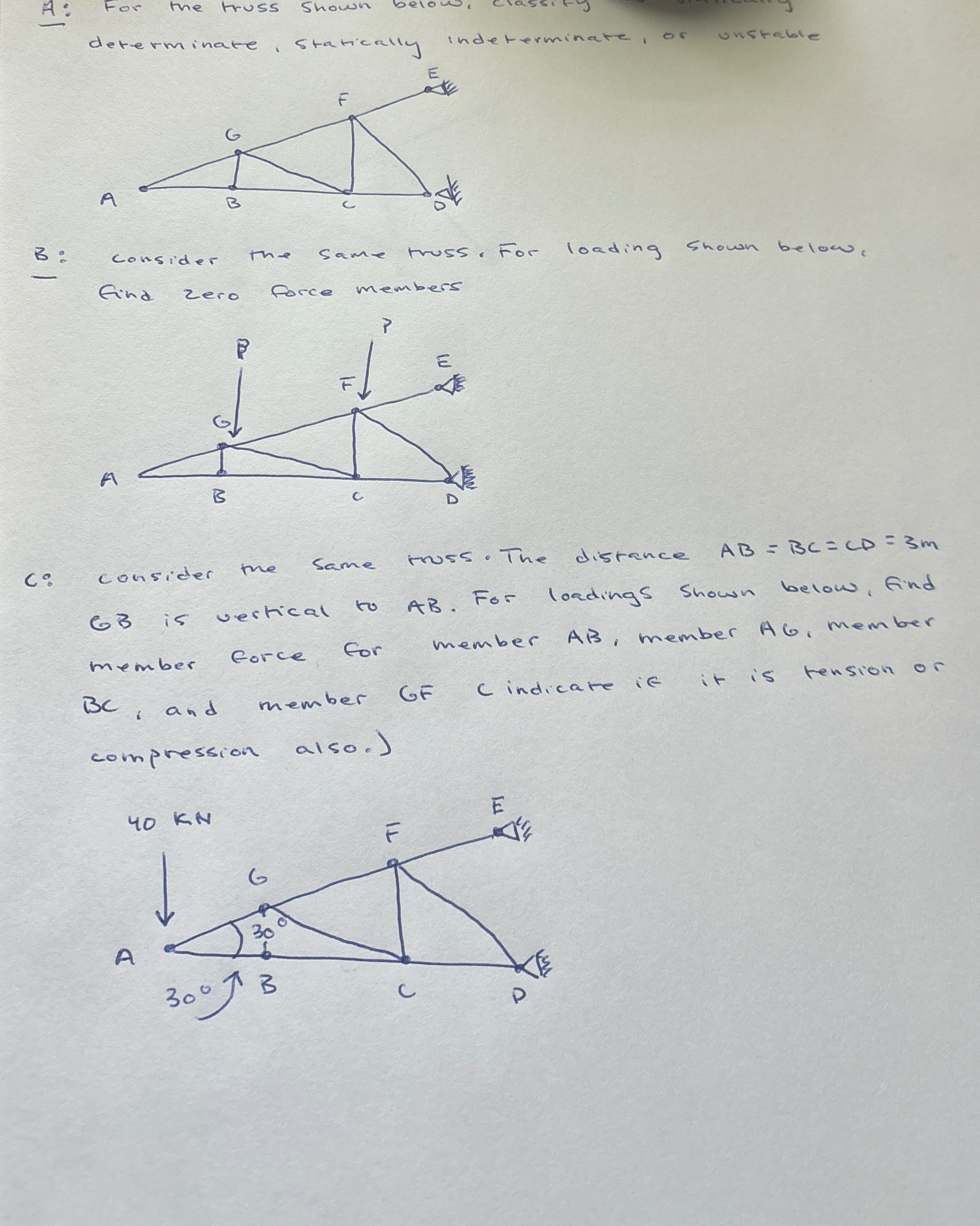

C: consider me same moss. The distance AB=BC=CD=3m63 is vertical to AB. Fot loadings shown below, find member force for member AB, member AG, member BC i and member GF C indicate iE it is tension or compression also.)
A: For the truss shown below. classity

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
